24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
Specifications
Brand Name :
BRANDO
Model Number :
VX31
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150000 PCS PER MONTH
Delivery Time :
7 TO 10 WORKING DAYS
Packaging Details :
PVC BAG, BOX, CARTON, PALLET
Valve :
Normally Closed , Normally Open , Common
Solenoid Coil :
Class B , Class H
Rated Voltage :
110V AC , 220 V AC , 24 V DC , 12 V DC
Body Material :
C37 Brass , Stainless Steel
Seal Options :
NBR , FKM , EPDM , PTFE , FFKM
Electrial Entry :
Grommet , Conduit , DIN terminal , Conduit Terminal
Orifice Diameter :
1.5mm , 2mm , 2.5mm , 3mm , 4mm
Vlave Construction :
Direct Operated Poppet
Enclosure :
Dusttight , Low jetproof , equivalent to IP65
Environment :
Location without corrosive or explosive gases
Description

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air , Water , Oil , Steam

●VX31/32/33 3 Way Solenoid Valve /3 Way Solenoid Valve 1/8" /3 Way Solenoid Valve 1/4" /3 Way Solenoid Valve 12v /3

Way Solenoid Valve 24v

●Medium: Water;;Air ;Neutral Gas;Air;Steam

●Acting Type: Direct Acting

●Seal Material: EPDM;VITON -5∽150℃ ;NBR-5∽80℃

●Port Size :1/8";1/4", ZG ,PT, NPT are available

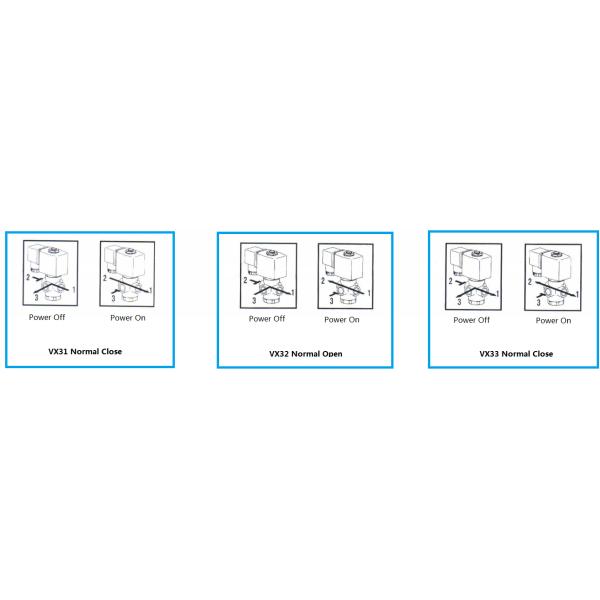

VX31 / VX32 / VX33 Direct Operated 3 Way Solenoid Valve Symbol:

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

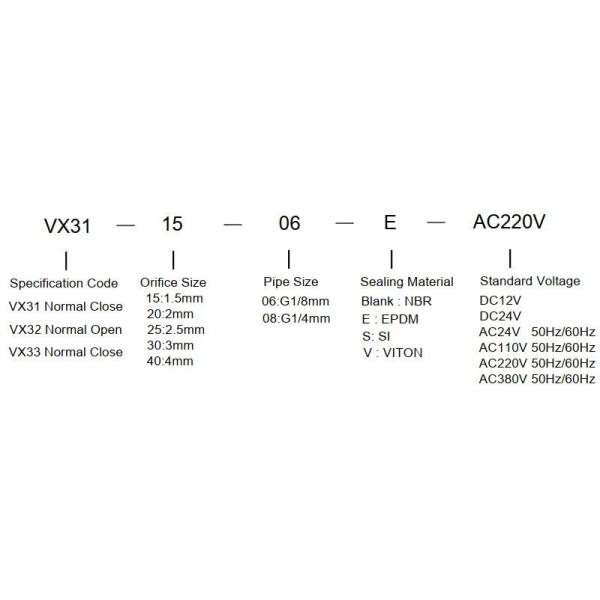

VX31 / VX32 / VX33 Direct Operated 3 Way Solenoid Valve Ordering Code:

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

VX31 / VX32 / VX33 Solenoid Operated Valve Feature:

1, Equal to SMC VX31 Series solenoid operated valve

2, Conformity managed in accordance with standards:

ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.

3 Way Solenoid Valve Specification:

Solenoid

Model

Orifice

Size

Cv

Value

Port

Size

 Working Pressure(Kgs/c㎡)

Medium

Temperature

Body

Material
AC DC
VX31 1.5 0.07

1/4" Or 1/8"

 13 11

NBR:-5∽85℃

EPDM:-5∽150℃

VITON:-10∽150℃

BRASS
2.0 0.14 11 9
2.5 0.21 9 7
3.0 0.25 6 4
4.0 0.35 3.5 2
VX32 1.5 0.07 13 11
2.0 0.14 11 9
2.5 0.21 9 7
3.0 0.25 6 4
4.0 0.35 3.5 2
VX33 1.5 0.07 7 5
2.0 0.14 5 4
2.5 0.21 4 3
3.0 0.25 2.5 2
4.0 0.35 1.7 0.8

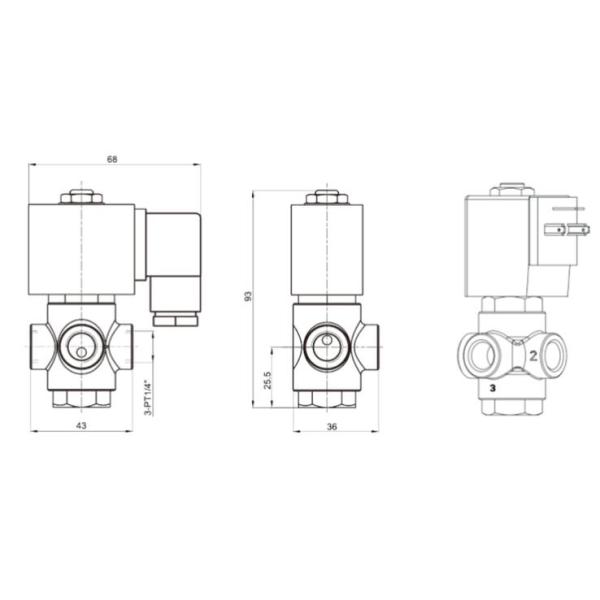

Valve Body Inner Detail of VX31 / VX32/ VX33 Solenoid Valve and Dimensions:

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

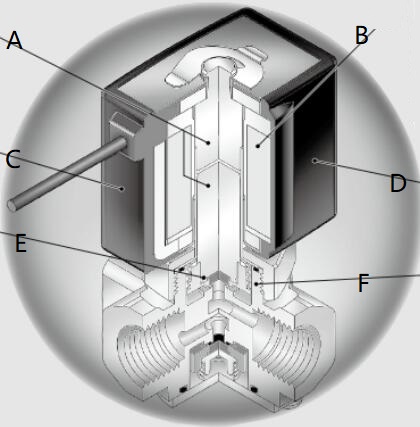

VX31 / VX32 / VX33 Direct Operated Three Way Solenoid Valve Design Features:

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

Part Number Description
A Improved corrosion resistance, special magnetic material adopted
B Reduced power consumption
C Encosure Equivalent to IP65
D Flame resistance UL94V-0 conformed, flame resistance mold coil material
E Low-noise construction, special construction enables to reduce the metal noise
F Improved maintenance performance, Maintenanace is performed easily due to the threaded assemly

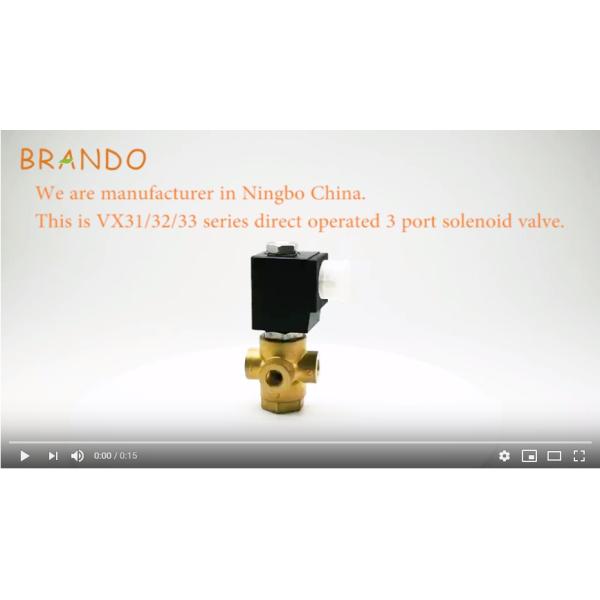

For more angle to view the solenoid valve, you can click below picture to take a look on Youtube websited that we posted:

24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water

Welcome your any question, just mail us or call us, we will response at once.
