1/4'' Inch M&M Type D399CVC Solenoid Valve Brass 3/2 NC DC24V For Auto Feeding System

The show is the 1/4'' Port 3/2 Way Normally Closed D399CVC Solenoid Valve, which has same structure and same function with M&M solenoid valve. The electromagnetic field generated by the solenoid coil attracts the armature (NC type) or closes the armature (NO type). There is a press-in sealing cone in the anchor. This is pressed directly onto the valve seat to close the D399CVC electromagnetic valve. When the armature rises, the medium can flow. When the armature is lowered, the D399CVC solenoid valve closes. The allowable pressure range depends on the tension of the solenoid. The average switching time is 5 to 25 milliseconds. It could be used in automatic feeding system to automatically control the delivery of feed.

Technical parameters of 1/4'' Inch 3/2 NC M&M Type Pneumatic Solenoid Valve:

Option available of M&M Type 1/4'' 3/2 Normally Cloaed Brass Solenoid Valve:

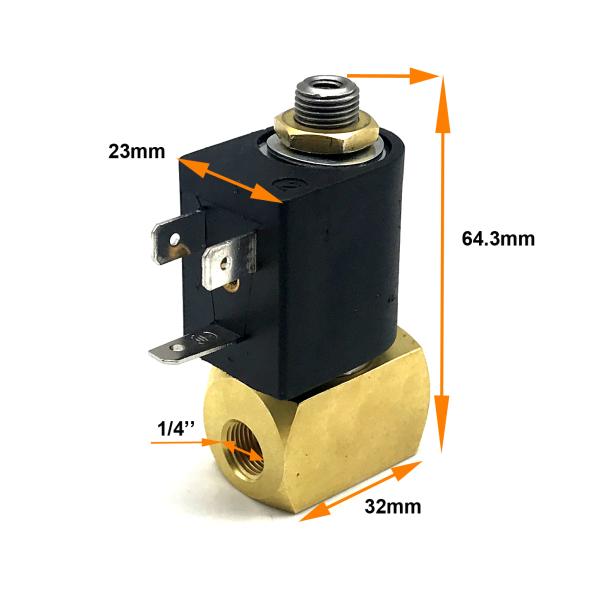

Overall dimension of D399CVC Electromagnetic Valve for Automatic Feeding System:

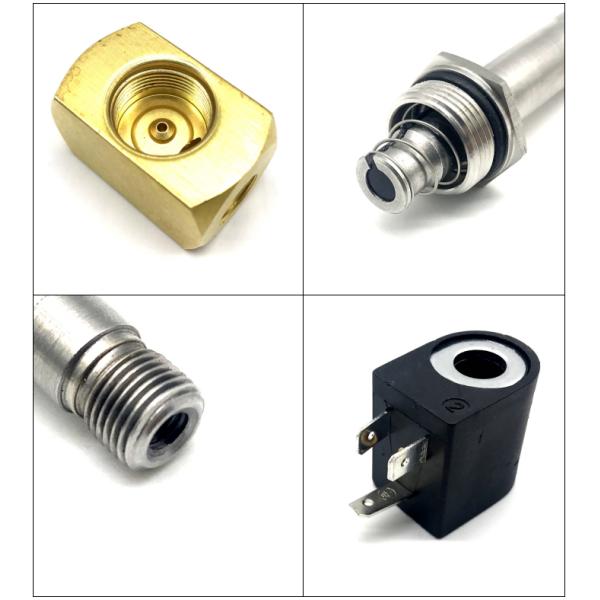

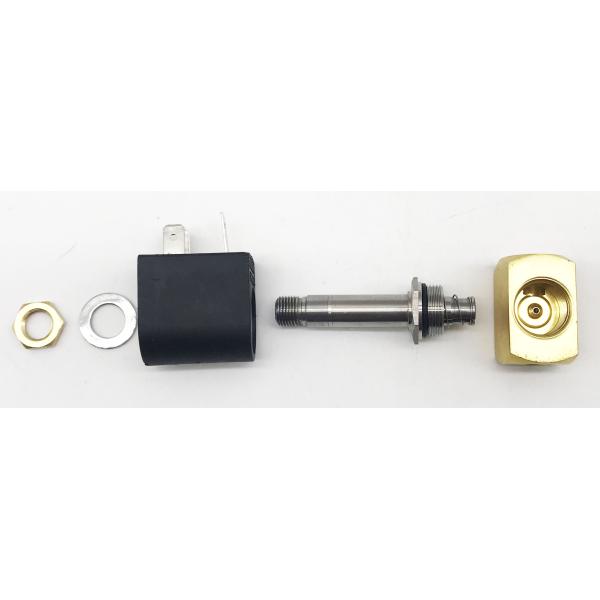

Deconstruction diagram of Brass 3/2 NC M&M Type D399CVC Solenoid Valve:

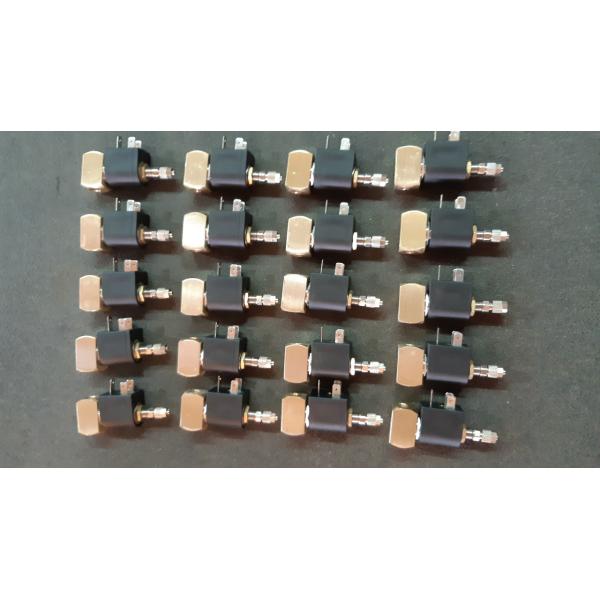

Details show of D399CVC Automatic Feeding System Brass Solenoid Valve:

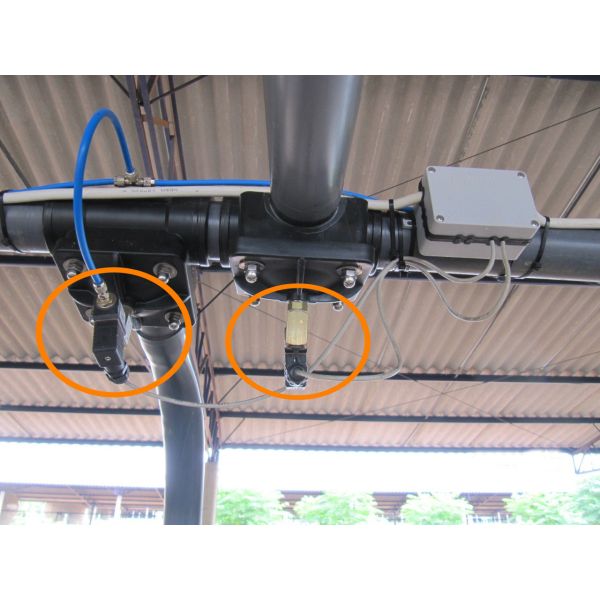

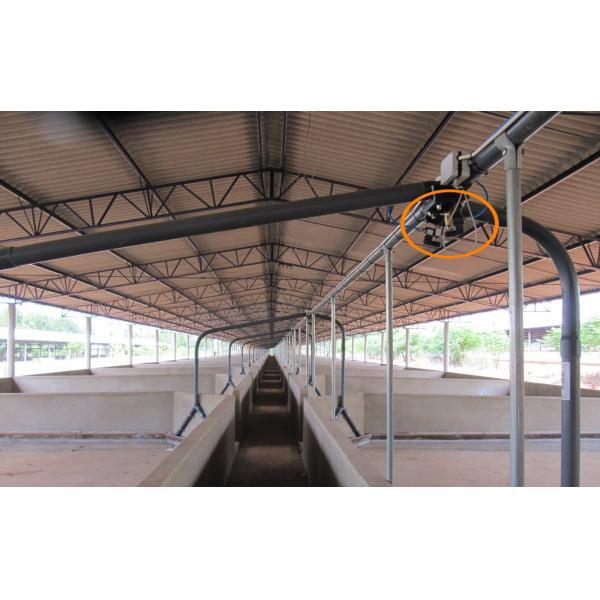

Application show of D399CVC Automatic Feeding System 1/4'' 3/2 Solenoid Valve:

More details about 1/4'' Inch M&M Type D399CVC 3/2 NC Solenoid Valve in below Youtube Video:

Overview of solenoid valve:
Solenoid valve is a commonly used actuator of industrial process control system to realize remote control or program control of system medium. It is to convert electromagnetic force into mechanical force to achieve switching purpose. Because solenoid valve has small volume, reliable action, light weight and operation. Simple and easy to maintain, the application has become more and more extensive.

Ordering instructions of solenoid valve:
1. If the model is not selected before ordering, please provide the corresponding technical parameters, such as: nominal diameter, medium type, working pressure, rated voltage, connection method, installation method, medium temperature, ambient temperature, valve body material and special function. Requirements (including: normally open or normally closed, signal feedback, check function, manual device, medium viscosity and corrosiveness); our professional sales engineers will communicate with you in time to implement the corresponding model.

2. When the working condition is very important or the piping system is more complicated, please be sure to provide the piping installation diagram and detailed parameters, which are jointly reviewed and verified by the engineers.

Applications: Medical equipment, food machinery, agricultural machinery, analytical instruments, water dispensers, blow molding machines, filling equipment, brewing equipment, generator sets, environmentally friendly water treatment, textile machinery pneumatic control, dry cleaning equipment, industrial furnaces, boiler burners , welding cutting and other product support and related industry automation control system.

Welcome to your any question and inquiry!
