ASCO Type 8262H232 1/4'' Inch 2-Way Brass Solenoid Valve Direct Operated 262 Seires

ASCO Type 8262H232 1/4'' Inch 2-Way Brass Solenoid Valve is used to control Air, Inert Gases, Light Oil, Water and other media and is widely used in the industrial or automotive industry. The port diamater is from 1/8'' to 1/4''. The valve body can be made of brass or stainless steel. The function is normally open or normally closed.

Characteristics of ASCO Type 8262H232 1/4'' Inch 2-Way Brass Solenoid Valve:
1. Reliable, proven high flow design
2. Small lift valve for tight closure
3. A variety of elastomers, can be used for special services
4. It can be installed in any position
5. Brass and stainless steel construction
6. Various pressure levels, sizes and elastic materials, long service life, less internal leakage
7. High flow valves for liquid, corrosive and air/inert gas service
8. Industrial applications include: car washing, air compressors, pumps, laundry equipment, industrial water control

Specifications of ASCO Type 262 Series Direct Operated 2/2 Way Solenoid Valve:

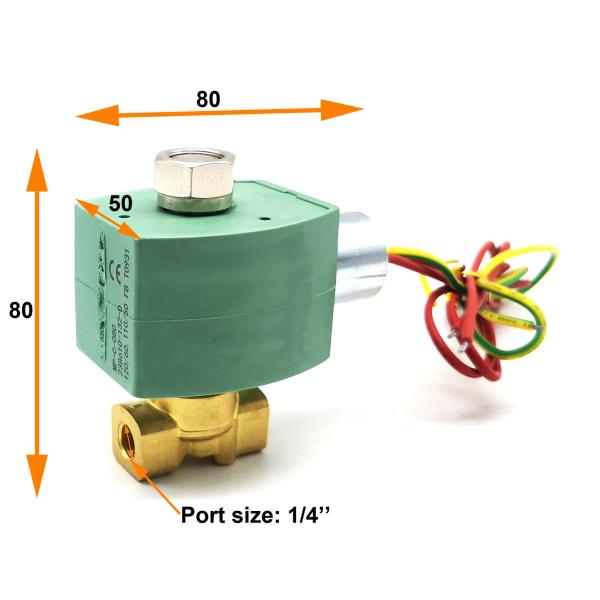

Main dimension of ASCO Type 8262H232 1/4'' Inch 2-Way Brass Solenoid Valve:

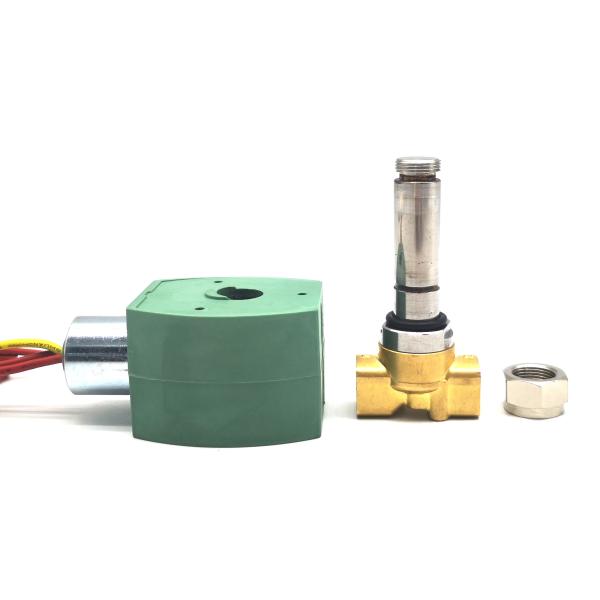

Deconstruction diagram of ASCO Type 8262H232 1/4'' Inch 2-Way Brass Solenoid Valve:

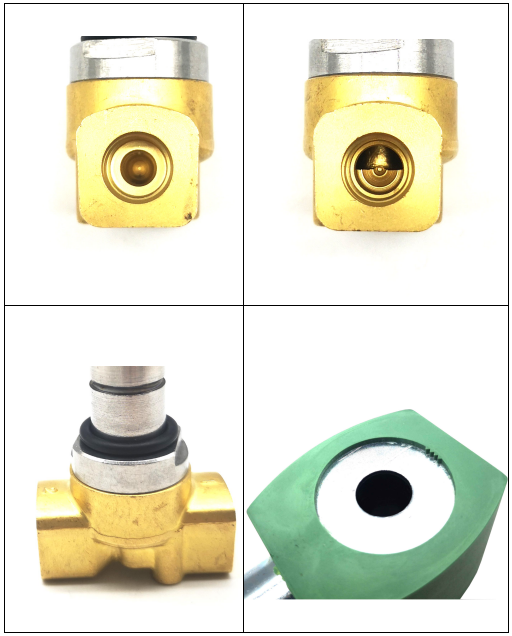

Details display of ASCO Type 8262H232 1/4'' Inch 2-Way Brass Solenoid Valve:

More details about ASCO Type 8262H232 Brass Solenoid Valve in below Youtube Video:

Installation instructions / notes of ASCO Type 262 Series Direct Operated 2/2 Way Solenoid Valve:
1. Solenoid valves are generally oriented and cannot be installed in reverse. Usually, “→” is used on the valve body to indicate the flow direction of the medium. The installation should follow the instructions of “→”.

2. Manual shut-off valve should be installed before and after the solenoid valve, and bypass should be set to facilitate the maintenance of the solenoid valve.

3. If the water hammer phenomenon occurs in the medium, select the waterproof hammer function of the solenoid valve or take appropriate precautions.

4. Before taking over, flush the pipe with a pressure of 0.3mpa to remove metal powder from the pipe, seal material residue and rust. Pay attention to the cleanliness of the media. If the media is mixed with dirt, impurities and other obstacles that hinder the normal operation of the solenoid valve, install the pipe in the filter valve (filter mesh is 60 mesh).

5. The steam solenoid valve inlet side should be equipped with a steam trap, the pipe should be inclined.

6. The solenoid valve should not be installed in the low recess of the pipe, but should be installed in the discharge pipe of the container, taking care not to withdraw from the bottom of the container, but to install it in the lower part of the container. container.

7. Be careful not to use too much sealing material when taking over.

8. Try not to let the solenoid valve be energized for a long time, which will easily reduce the life of the coil or even burn out the coil. That is to say, the solenoid valves that are often opened and often closed cannot be used interchangeably.
