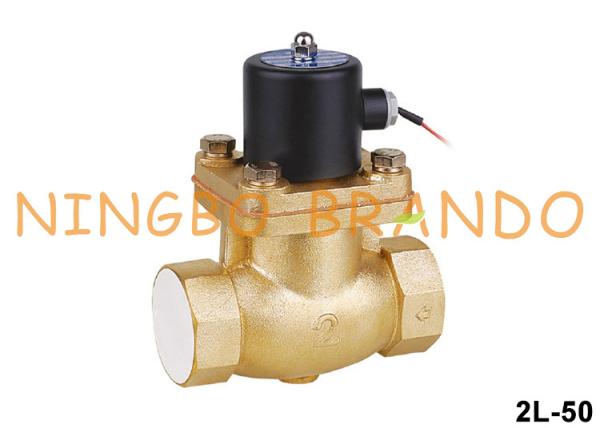

2L-50 2'' DN50 Steam Solenoid Valve PTFE Seal Brass Body 220VAC
2L-50 2'' DN50 Steam Solenoid Valve PTFE Seal Brass Body 220VAC
Specifications
Brand Name :
Brando
Model Number :
2L-50
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Working Medium :
Steam, Hot Water
Port Size :
2''
Orifice Size :
50mm
Operation Mode :
2 Way Normally Closed
Operation :
Piston Pilot Operated
Body Material :
Brass
Seal Material :
PTFE
Working Temperature Range :
-20 to +185℃
Pressure Range :
0.1 to 1.5 MPa
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

2L-50 2'' DN50 Steam Solenoid Valve PTFE Seal Brass Body 220VAC

Product Features of 2L series Steam Solenoid Valve:

1. Working Medium: Hot Water, Steam, etc
2. Working Pressure Range: 0.1 to 1.5 MPa
3. Seal Material: PTFE
4. Body Material: Brass, Stainless Steel
5. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
6. Orifice Size: 17mm, 22mm, 30mm, 50mm
7. Operation: Piston Pilot Operated

8. Function: 2 Way Normally Closed
9. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of 2L series Steam Solenoid Valve:​

2L Series Model
2L-10
2L-15
2L-20
2L-25
2L-35
2L-40
2L-50
US Series Model
US-10
US-15
US-20
US-25
US-35
US-40
US-50
Orifice Size
17
17
17
22
30
30
50
Port Size
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Hot Water, Steam
Action
Piston Pilot Operated
Function
2 Way Normally Closed
Body Material
Brass, Stainless Steel
Seal Material
PTFE
Pressure
Range
0.1 to 1.5 MPa
Temp. Range
-20 to +185℃
Coil Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC


Dimension of 2L series Steam Solenoid Valve:

2L-50 2'' DN50 Steam Solenoid Valve PTFE Seal Brass Body 220VAC

US Series
2L Series
A
B
C
Port Size
US-10
2L-10
82
42
146
3/8''
US-15
2L-15
1/2''
US-20
2L-20
3/4''
US-25
2L-25
90
54
162
1''
US-35
2L-35
110
75
185
1 1/4''
US-40
2L-40
1 1/2''
US-50
2L-50
120
77
195
2''
