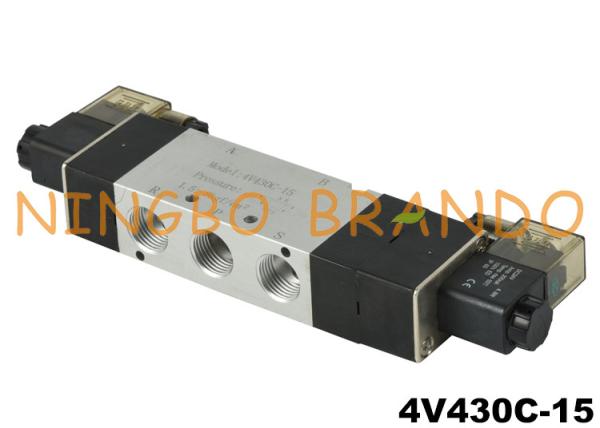

5/3 Way 1/2'' Pneumatic Solenoid Valve 4V430C-15 24Volt 220Volt

This is a 4V430C-15 Airtac type pneumatic solenoid valve, 1/2'' inlet and out let size, female thread (G, NPT, PT, BSP) connection, double solenoid, 5 way 3 position, several standard voltage levels are optional (12V DC, 24V DC, 110V AC, 220V AC). Pneumatic solenoid valves usually have a slide valve design. They consist of an aluminum body with cylindrical holes. The different ports of the valve are connected to the cylinder. The spool valve in the cylinder has multiple seals along its length. By sliding the spool back and forth, you can connect or close different ports. For spool designs, it is very difficult to achieve a leak-free seal. Therefore, the internal leakage of the pneumatic solenoid valve is always small (but acceptable). With these types of valves, air can flow through the valve in both directions. This is called bidirectional.

Data of 4V400 Series Pneumatic Solenoid Valves:

Product video of 4V430C-15 Pneumatic Solenoid Valve:

Main dimension of 4V430C-15 Pneumatic Solenoid Valve:

Brando Factory Production of Pneumatic Solenoid Valves:

More Pneumatic Solenoid Valves for you to choose:

Brando is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).

Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10

2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15

3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08

*4V100 Pneumatic Valves *4V200 Pneumatic Valves *4V300 Pneumatic Valves *4V400 Pneumatic Valves

*5/2 Way Pneumatic Valve *5/3 Way Pneumatic Valve *2/2 Way Pneumatic Valve *Pneumatic Fast Fitting

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
