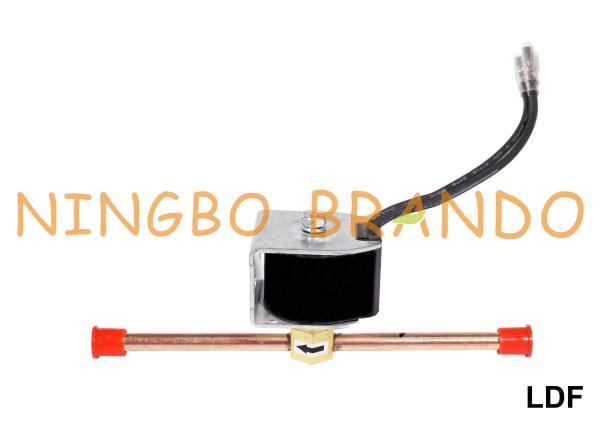

Sanhua Type LDF Series Refrigeration Solenoid Valve For Air Conditioner Heat Pump
Sanhua Type LDF Series Refrigeration Solenoid Valve For Air Conditioner Heat Pump
Specifications
Brand Name :
BRANDO
Model Number :
LDF
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Refrigeration Solenoid Valve
Orifice Size :
2mm, 3mm, 4mm, 5.8mm, 8mm
Tube OD (inch) :
1/4'', 5/16'', 3/8''
Normal Position :
NC (Normally Closed)
Actuation :
Direct Acting, Pilot Operated
Max Operating Pressure :
4.5 MPa
Wiring Type :
Flying Leads
Voltages :
24VAC, 110VAC, 220VAC
Application :
Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, etc
Description

Sanhua Type LDF Series Refrigeration Solenoid Valve For Air Conditioner Heat Pump

LDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.


* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:

1. Liquid, suction and discharge line
2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
3. Flow direction corresponds to the arrow

Technical Data of LDF Series Solenoid Valve:

Sanhua Type LDF Series Refrigeration Solenoid Valve For Air Conditioner Heat Pump
LDF2A
Sanhua Type LDF Series Refrigeration Solenoid Valve For Air Conditioner Heat Pump
LDF8A

Model No Function Operation

Orifice Size

(mm)

Kv Value

(m³/h)

MOP

(MPa)

Max OPD

(MPa)

Min OPD

(MPa)

Port Size

(inch)
LDF2A01 2 Way Normally Closed Direct 2 0.12 4.5 3.1 0 1/4''
LDF2A02 2 0.12 4.5 3.1 0 1/4''
LDF3A08 3 0.26 4.5 3.1 0.005 1/4''
LDF4A08 4 0.3 4.5 3.1 0.005 1/4''
LDF6A08 5.8 0.6 4.5 3.1 0.005 5/16''
LDF8A01 8 0.9 4.5 3.1 0.005 3/8''
LDF8A02 8 1.1 4.5 3.1 0.005 3/8''
