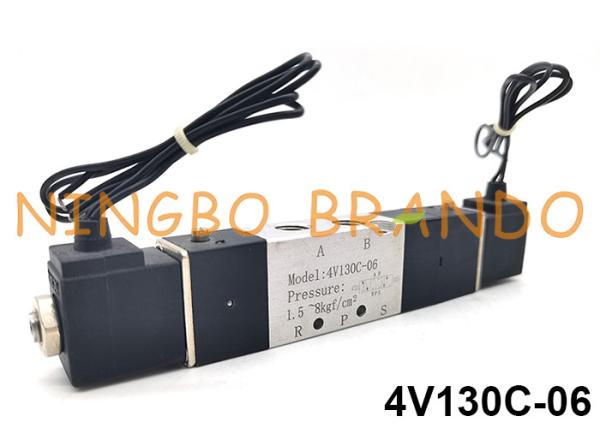

4V130C-06 Airtac Type Pneumatic Solenoid Valve 1/8'' 5/3 Way DC24V AC220V
4V130C-06 Airtac Type Pneumatic Solenoid Valve 1/8'' 5/3 Way DC24V AC220V
4V130C-06 Airtac Type Pneumatic Solenoid Valve 1/8'' 5/3 Way DC24V AC220V
4V130C-06 Airtac Type Pneumatic Solenoid Valve 1/8'' 5/3 Way DC24V AC220V
Specifications
Brand Name :
BRANDO
Model Number :
4V130C-06
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Plastic bag, Box, Carton, Pallet
Price :
Negotiation
Product Name :
Pneumatic Solenoid Valve
Valve Type :
5 Way 3 Position
Voltage :
220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Working Pressure :
0.15 to 0.8MPa(21-114psi)
Max. frequency :
5 cycle/sec
Port Size :
In=Out=1/8''
Body Material :
Aluminum alloy
Fluid :
Air (to be filtered by 40 μm filter element)
Description

4V130C-06 Airtac Type Pneumatic Solenoid Valve 1/8'' 5/3 Way DC24V AC220V


With pneumatic valves, the configuration or valve type indicates how air is connected to the device and switched through the valve. This configuration has a strong influence on the device the valve is controlling and understanding this is critical for specifying the proper valve for the application.

Valve configuration symbols must be interpreted. The pneumatic symbol for a valve has three parts: actuation (how the valve is actuated), position (the number of positions and ports), and flow (how the air flows through the device). The actuation methods are on the left and right of the symbol and can be thought of as pushing the boxes left or right. The number of boxes indicates the number of positions — typically two or three. Flow of supply air or exhaust for each position is defined by the information in each box.

Technical Data:

Model
4V110-06
4V120-06
4V130C-06
4V130E-06
4V130P-06
4V110-08
4V120-08
4V130C-08
4V130E-08
4V130P-08
Fluid
Air(to be filtered by 40 μm filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=1/8''
In=Out=1/4''
Orifice Size
5.5 mm2 (Cv=0.31)
5.0 mm2 (Cv=0.28)
12.00 mm2 (Cv=0.67)
9.00 mm2 (Cv=0.50)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.2MPa
Temperature ℃
5~50
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
5 cycle/sec
5 cycle/sec
3 cycle/sec

Main Dimension of 4V130C-06 Pneumatic Solenoid Valve:

4V130C-06 Airtac Type Pneumatic Solenoid Valve 1/8'' 5/3 Way DC24V AC220V

Video of 4V130C-06 Pneumatic Solenoid Valve:

Production Video of Pneumatic Solenoid Valve:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
