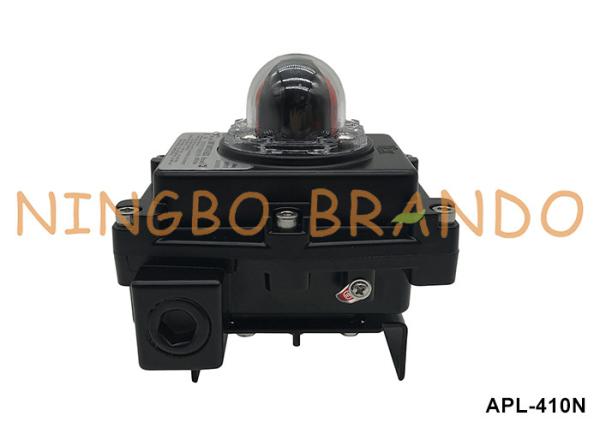

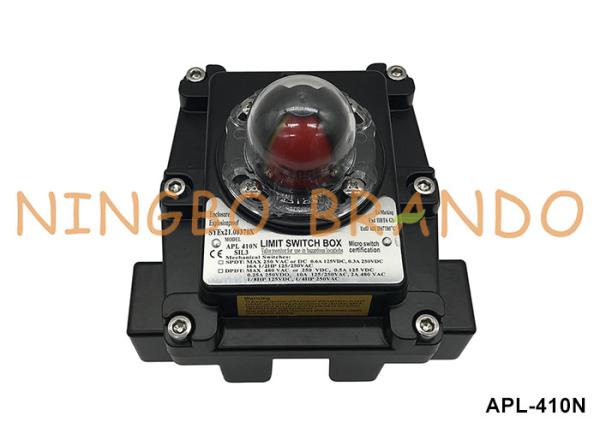

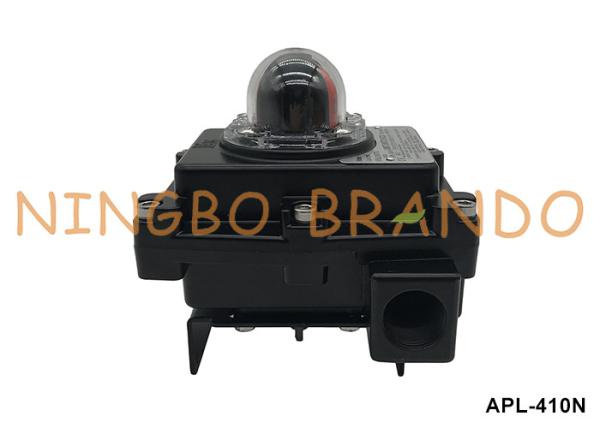

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
Specifications
Brand Name :
BRANDO
Model Number :
APL-410N
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Limit Switch Box
Cable Entry :
2xG3/4''
Enclosure :
Explosion Proof (Ex d IIB T6)
Terminal Points :
8 (0.08 to 2.5mm²)
Travel Angle :
0 to 90°
Dome Indicator :
2-Way, Close: Red, Open: Yellow
Switch Type :
2xMechanical Switches (2-SPDT)
Ambient Temperature :
-20 to 60℃
Description

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve

Limit Switch Box (Valve Position Indicator) is activated by cams connected to the actuator shaft. When activated, they send discrete electrical signals to indicate actual valve position, usually confirming that a valve fully opened or closed operated remotely.

Order Code:

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve

Standard Specifications:

Model
APL-2N
APL-3N
APL-4N
APL-5N
Enclosure
IP67/NEMA4&4X
IP67/NEMA4&4X,
Ex d IIB T6
IP67/NEMA4&4X,
Ex d IIC T6
Cable Entries
2x G1/2''
2x G3/4''
Ambient Temperature
-20 to 80℃
-20 to 60℃
Terminal Points
8 (0.08 to 2.5mm²)
Travel Angle
0 to 90°
Dome Indicator
2-way, yellow (open) / red (close)
Switches
2x mechanical switches
2x proximity sensors
Color
Black (Chromated polyester powder coating)

Optional Specifications:

Model
APL-2N
APL-3N
APL-4N
APL-5N
Enclosure
IP68
IP68
IP68, Ex d IIB T6,
Ex ia IIC T6
Cable Entries
2x NPT1/2'', M20, PG13.5, PF1/2'', PT1/2''
2x NPT3/4'', M20, PG13.5, PF3/4'', PT3/4''
or
4x NPT3/4'', M20, PG13.5, PF3/4'', PT3/4''
2x NPT3/4'', M20, PG13.5, PF3/4'', PT3/4''
Terminal Points
10, 12, 14, 16, 20 (0.08 to 2.5mm²)
Travel Angle
0 to 90°
Dome Indicator
3-way, green (open) / red (close)
Switches
4x mechanical switches
4x proximity sensors
Potentiometer Unit (PIU)
1k ohm, 5k ohm, 10k ohm
Current Position Transmitter (CPT)
4-20 mA dc
12.5-37VDC
Color
Red, Green, Blue, Yellow, Silver

APL-410N Dimension:

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve

Our Production:

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve
