2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V
2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V
Specifications
Brand Name :
Brando
Model Number :
1913BA-B
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Port Size :
1/8'', 1/4''
Orifice Size :
1.6mm, 2.0mm, 2.5mm, 3.0mm
Operation Mode :
2 Way Normally Closed
Operation :
Direct Action
Body Material :
Brass
Working Medium :
Air, Water, Oil, Steam
Seal Material :
NBR, FKM, EPDM
Pressure Range :
0 to 16 bar
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V


Product Features of Brass Solenoid Valve:

1. Working Medium: Air, Water, Steam, Oil etc.
2. Working Pressure Range: 0 to 1.6 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Connection Type: 1/8'', 1/4''
5. Orifice Size: 1.6mm, 2.0mm, 2.5mm, 3mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Brass Solenoid Valve:

2 Way Normally Closed

Model
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
1913BA161
1/8''
1.6mm
0.11
0MPa
1.6MPa
1.6MPa
NBR
EPDM
FKM
Brass
Stainless Steel
1913BA251
1/8''
2.5mm
0.18
1.2MPa
1.2MPa
1913BA301
1/8''
3.0mm
0.3
1.0MPa
1.0MPa
1913BA252
1/4''
2.5mm
0.18
1.2MPa
1.2MPa
1913BA302
1/4''
3.0mm
0.3
1.0MPa
1.0MPa


2 Way Normally Open

Model
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
1913BB161
1/8''
1.6mm
0.11
0MPa
1.0MPa
1.0MPa
NBR
EPDM
FKM
Brass
Stainless Steel
1913BB251
1/8''
2.5mm
0.18
1.0MPa
1.0MPa
1913BB301
1/8''
3.0mm
0.3
1.0MPa
1.0MPa
1913BB252
1/4''
2.5mm
0.18
0.8MPa
0.8MPa
1913BB302
1/4''
3.0mm
0.3
0.6MPa
0.6MPa

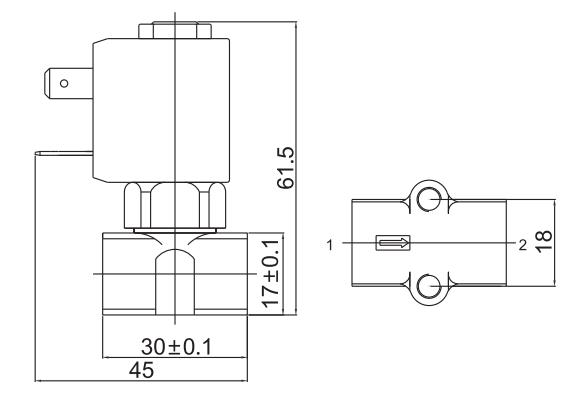

Main Dimension of Brass Solenoid Valve:

2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V

Brando Factory Production Video of Solenoid Valves:

BRANDO Factory Production Picture of Solenoid Valves:

2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V

Packaging and Shiping of Brando Solenoid Valves:

2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V 2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V 2 Way NC Direct Action Small Brass Solenoid Valve For Water Air 24V 220V
Internal Box Carton Pallet


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
