1/8'' 1/4'' M&M Type RD236 Brass Solenoid Valve 2 Way Normally Open
1/8'' 1/4'' M&M Type RD236 Brass Solenoid Valve 2 Way Normally Open
Specifications
Brand Name :
Brando
Model Number :
1913EB
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Port Size :
1/8'', 1/4''
Orifice Size :
1.6mm, 2.5mm, 3mm, 3.5mm, 4mm
Operation Mode :
2 Way, Normally Open
Operation :
Direct Acting
Body Material :
Brass
Working Medium :
Compressed Air, Water
Pressure Range :
0 to 1.6 MPa
Seal Material :
NBR, FKM, EPDM
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

1/8'' 1/4'' M&M Type RD236 Brass Solenoid Valve 2 Way Normally Open


Product Features of Brass Solenoid Valve:

1. Working Medium: Compressed Air, Water, etc.
2. Working Pressure Range: 0 to 1.6 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/8'', 1/4''
5. Orifice Size: 1.6mm, 2.5mm, 3mm, 3.5mm, 4mm
6. Body Material: Brass
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Brass Solenoid Valve:

Model
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
1913EB161
1/8''
1.6mm
0.11
0MPa
1.6MPa
1.6MPa
NBR
EPDM
FKM
Brass
1913EB251
1/8''
2.5mm
0.18
1.2MPa
1.2MPa
1913EB301
1/8''
3.0mm
0.3
1.0MPa
1.0MPa
1913EB252
1/4''
2.5mm
0.18
1.2MPa
1.2MPa
1913EB302
1/4''
3.0mm
0.3
1.0MPa
1.0MPa
1913EB352
1/4''
3.5mm
0.34
0.8MPa
0.8MPa
1913EB402
1/4''
4.0mm
0.5
0.6MPa
0.6MPa

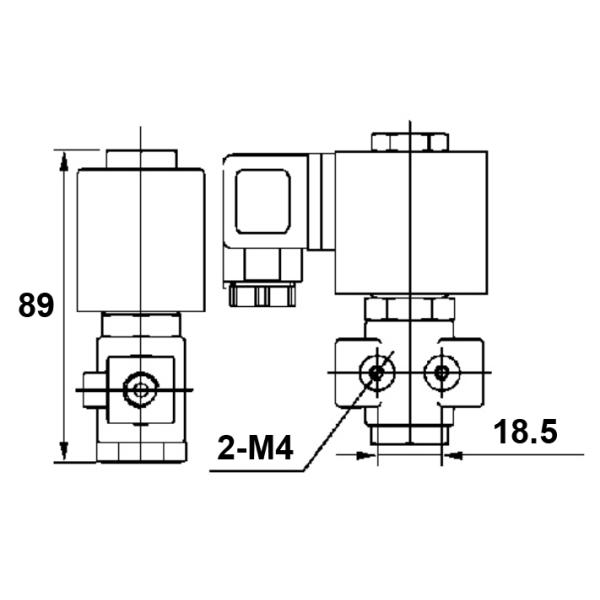

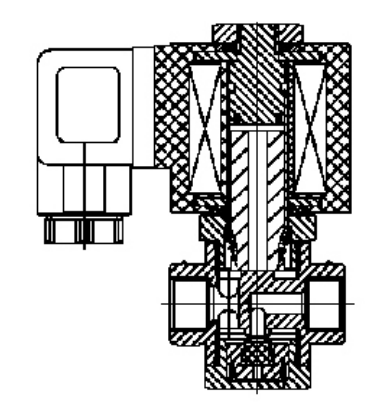

Main Dimension of Brass Solenoid Valve:

1/8'' 1/4'' M&M Type RD236 Brass Solenoid Valve 2 Way Normally Open 1/8'' 1/4'' M&M Type RD236 Brass Solenoid Valve 2 Way Normally Open


Brando Factory Production of Solenoid Valves:


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
