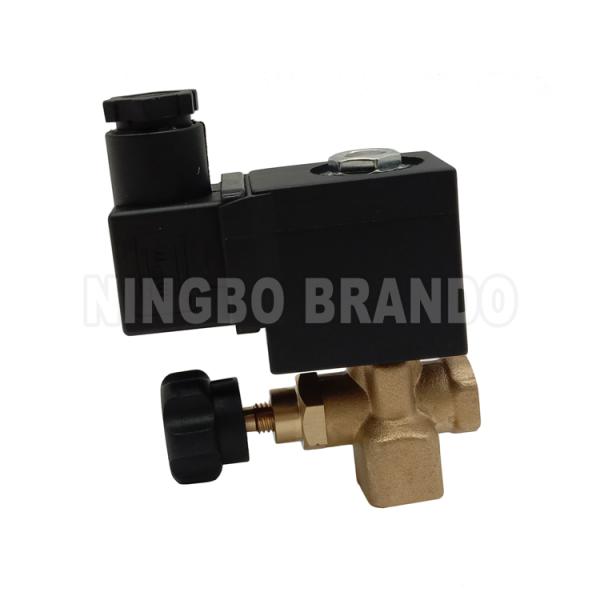

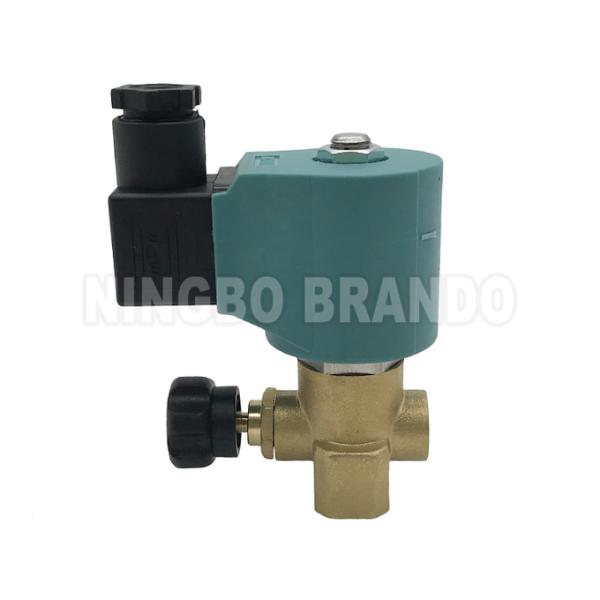

5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V
5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V
5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V
5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V
5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V
5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V
Specifications
Brand Name :
BRANDO
Model Number :
5523
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Production Name :
Solenoid Valve
Inlet Size :
R1/8''
Outlet Size :
Hose Connection (6.2mm OD)
Orifice Size :
2mm to 3mm
Body Material :
Brass
Seal Material :
EPDM, FKM
Working Medium :
Hot Water, Steam
Working Pressure Range :
0 to 10 bar
Function :
2 Way Normally Closed
Coil Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Application :
Steam Iron, Steam Generator, Steam Station
Working Medium Temperature Range :
EPDM: -30 to +120 ℃, FKM: -30 to +150 ℃
Description

5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V

Product Feature:

1. Model No: 5523
2. Port Size: Inlet: R1/8'', Outlet: Hose Connection (6.2mm OD)
3. Orifice Size: 2mm to 3mm
4. Body Material: Brass
5. Seal Material: EPDM, FKM
6. Working Medium: Steam, Hot Water
7. Working Medium Temperature Range: EPDM: -30 ℃ to +120℃, FKM: -30 ℃ to +150℃
8. Working Pressure Range: 0 to 10 bar
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application: Steam Iron, Steam Boiler, Steam Generator, etc

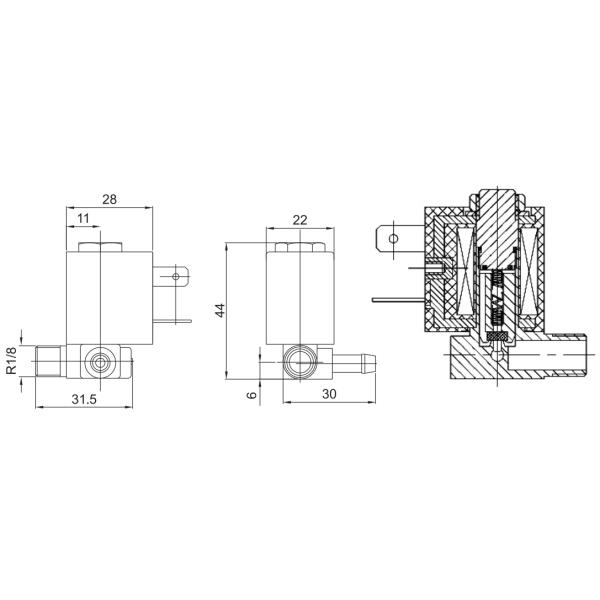

Dimension and Data of 5523 Solenoid Valve:

5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V

Model No
5523
Port Size
Inlet: R1/8''
Outlet: Hose Connection (6.2mm OD)
Orifice Size
2mm to 3mm
Body Material
Brass
Seal Material
EPDM, FKM
Working Medium
Steam, Hot Water
Working Medium Temperature Range
EPDM: -30 ℃ to +120 ℃
FKM: -30 ℃ to +150 ℃
Working Pressure Range
0 to 10 bar
Operation
Direct Acting
Function
2 Way Normally Closed
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

BRANDO Solenoid Valve Production Video:

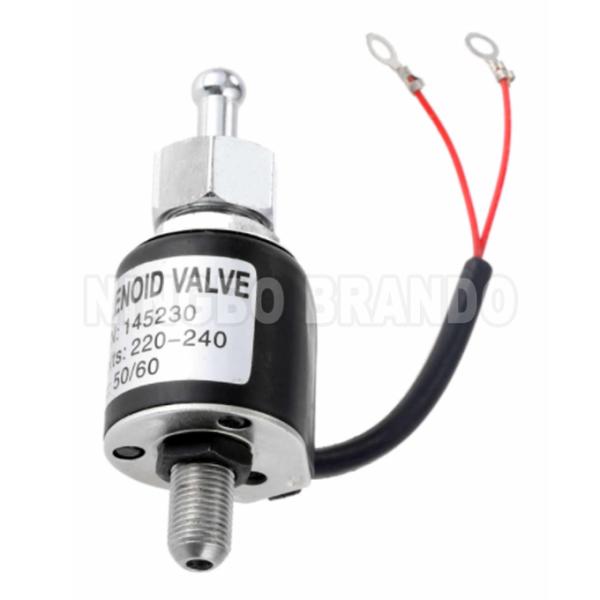

More Steam Iron Solenoid Valves for you to choose:

5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V 5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V 5523 CEME Type Solenoid Valve For Steam Iron Steam Generator Station 220V 230V

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
