High Pressure Water Air Stainless Steel Solenoid Valve 100 Bar 12V 24V
High Pressure Water Air Stainless Steel Solenoid Valve 100 Bar 12V 24V
Specifications
Brand Name :
Brando
Model Number :
BDI-J
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
$3 to $50 per pc
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
High Pressure Solenoid Valve
Working Medium :
Air, Gas, Liquid, Water
Port Size :
1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
Orifice Size :
15mm, 20mm, 25mm, 32mm, 40mm, 50mm
Operation Mode :
2 Way, Normally Closed
Operation :
Pilot Piston Operated
Body Material :
Stainless Steel
Seal Material :
PTFE ()
Pressure Range :
6 to 100 Bar
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

High Pressure Water Air Stainless Steel Solenoid Valve 100 Bar 12V 24V

Product Features of high pressure solenoid valve:

1. Working Medium: Air, Gas, Water, Liquid, etc
2. Medium Temperature Range: 0 to +120℃
3. Working Pressure Range: 6 to 100 Bar
4. Function: 2 Way, Normally Closed
5. Operation: Piston Pilot Operated
6. Body Material: Stainless Steel 304
7. Seal Material: PTFE ()
8. Voltages: 12VDC, 24VAC, 24VAC, 110VAC, 220VAC (50/60Hz)

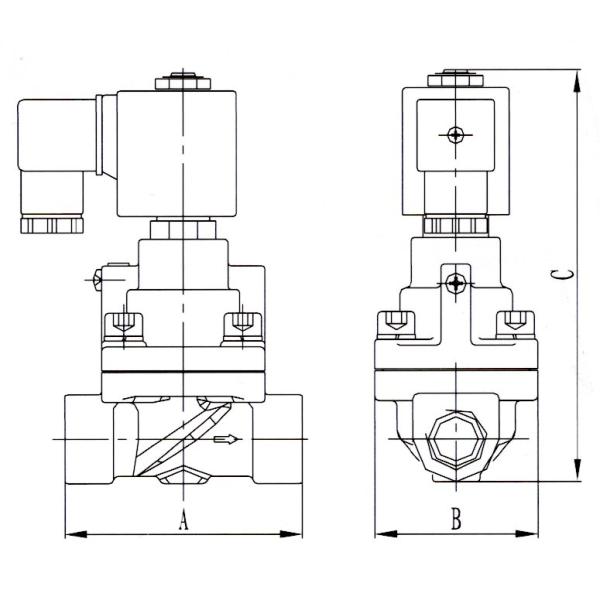

Dimension and Data of High Pressure Solenoid Valve:​

High Pressure Water Air Stainless Steel Solenoid Valve 100 Bar 12V 24V

Model
Orifice Size
Port Size
Cv
Working Pressure
(Bar)
Dimension
NC
NO
BDI-15J
15mm
1/2''
4.8
6 to 100
6 to 100
80x55x140mm
BDI-20J
20mm
3/4''
7.6
90x60x153mm
BDI-25J
25mm
1''
12
100x68x162mm
BDI-32J
32mm
1 1/4''
20
6 to 80
6 to 80
110x80x170mm
BDI-40J
40mm
1 1/2''
30
130x90x185mm
BDI-50J
50mm
2''
48
150x108x201mm
