1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V
1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V
Specifications
Brand Name :
Brando
Model Number :
UPVC-15F, CPVC-15F
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
Anti Corrosion Solenoid Valve
Function :
2 Way, Normally Closed
Pipe Connection :
Flanged
Port Size :
1/2''
Orifice Size :
15mm
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Fluids :
Weak Acid & Alkali (Gas, Liquid)
Valve Body Material :
UPVC, CPVC
Seal Material :
FKM, EPDM
Working Pressure Range :
0.01 to 0.6 MPa
Description

1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V

UPVC is a kind of stiff PVC,which has strong the properties of strong force, abrasion resistant, flammability and electrical insulation. It is suitable for the general corrosive fluid.

CPVC is the modified products of PVC resin, which is a kind of new resin by the chlorination process. Comparing to the traditional PVC resin, the CPVC has better chemical stabilities and the anti-corrosion properties are improved, it has better performance in the working condition with high heat, acid, alkali, salt and oxidant. The max. woking temperature up to 110℃, the regular working temperature is 95℃. CPVC is a kind of new engineering material with wide application.

Technical Data of UPVC / CPVC Body Solenoid Valve:

UPVC Body
UPVC-15
UPVC-20
UPVC-25
UPVC-32
UPVC-40
UPVC-50
CPVC Body
CPVC-15
CPVC-20
CPVC-20
CPVC-32
CPVC-40
CPVC-50
Port Size (inch)
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Orifice Size (mm)
15
20
25
32
40
50
Cv Value
4
5.5
13
17
25
40
Medium
Weak Acid & Alkali (Gas, Liquid)
Working Pressure
0.01 to 0.6 MPa
Working Temperature
Max. +50℃
Seal Material
EPDM, FKM
Voltage
220VAC
15w
Start: 200w Keep: 5w
Start: 350w Keep: 10w
24VDC
16w
28w
Start: 75w Keep: 25w

Main Dimension of UPVC / CPVC Body Solenoid Valve:
1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V

Female Thread Port

1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V

Flange Port

Model
Port Size
Overall Dimension (mm)
L
H
W
C
K
D
UPVC-15
CPVC-15
1/2''
74
132
63.5
63.5
92
φ64
Flange
108
UPVC-20
CPVC-20
3/4''
80
137
63.5
63.5
92
φ75
Flange
125
UPVC-25
CPVC-25
1''
100
147
74
74
92
φ85
Flange
152
UPVC-32
CPVC-32
1 1/4''
120
171
94
94
94
φ100
Flange
183
UPVC-40
CPVC-40
1 1/2''
130
180
94
94
94
φ110
Flange
201
UPVC-50
CPVC-50
2''
172
225
155
155
94
φ125
Flange
250

Brando Solenoid Valve Factory Production Video:

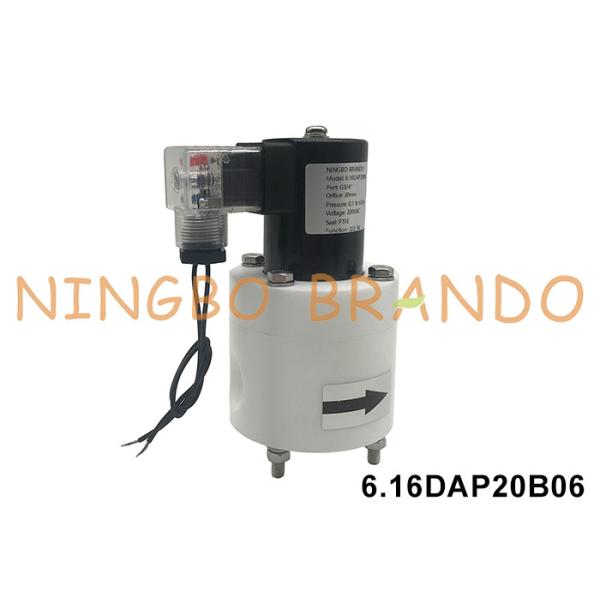

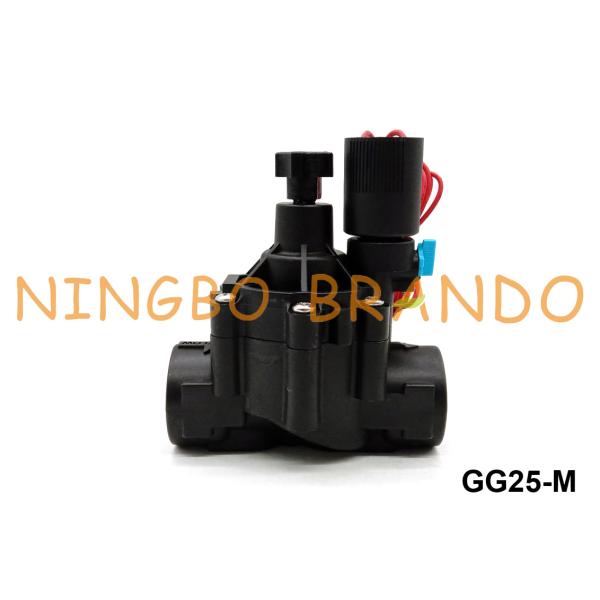

More Anti Corrosion Solenoid Valves for you to choose:

1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V 1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V
1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V 1/2'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosive 24V 220V

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
