Goyen Type CA25FS 1'' Flange Dust Collector System Pulse Jet Valve

Our Goyen type dust collector pulse jet valves have been specially designed for use in dust collector systems. The high-flow fast-opening 2-way valves are used for pulsing large volumes of air into filter bags for particulate removal. The valve offers extremely high flow, simple installation, and easy maintenance. In operation, a unique flow path results in a large per-pulse volume.

YouTube video of CA25FS Goyen Replacement Nitrile Diaphragm Valve:

Technical parameter of Goyen Type FS Series Flanged Dust Collector Valves:

Main dimension of 1'' CA25FS Goyen Replacement Pulse Jet Valve:

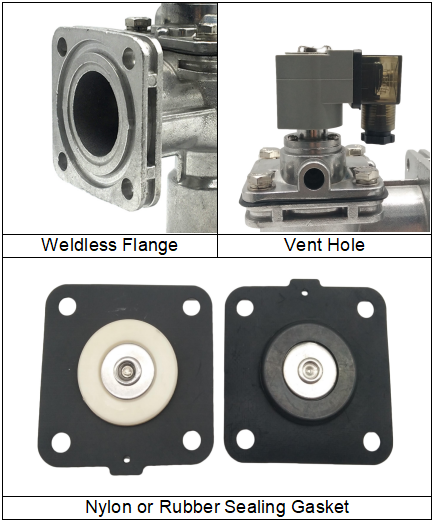

Detail pictures of CA25FS Dust Collector Pulse Valve With Flange Port:

Dust pulse valve injection cycle and air bag volume calculation method:
The blowing cycle of the dusting pulse valve: the length of the blowing cycle of the dusting pulse valve directly affects the pressure drop of the dust collector. For the pulse bag type dust collector with timing control, after the injection cycle is set, it is periodically blown (ie, the pulse controller is turned on). By adjusting the pulse period, the dust collector can be operated with the pressure drop substantially stable. The blowing cycle should be extended as much as possible without affecting the normal operation of the precipitator. This not only reduces the compressed air consumption, but also extends the life of the pulse valve diaphragm and the dust bag. The blowing cycle also affects the power consumption, the blowing cycle is short, the compressed air consumption is large, the power consumption is also increased, the blowing cycle is extended, and the power consumption of the blowing system is small, but the pressure drop of the dust collector is also increased. Will increase the power consumption of the filtration system. Therefore, whether the total power consumption is saved must be fully considered, and the injection cycle of the pulse valve should be adjusted according to different operating parameters.

Dust pulse valve air bag volume calculation method: For example, if the dust pulse valve air bag length is 5 meters, diameter 40cm, volume is radius * radius * π * length, which is 0.2 * 0.2 * 3.14 * 5 = 0.628 cubic meters = 628 liters (for the volume of the air bag, in the natural atmosphere), 1 liter is equal to 0.001 cubic meters.

We also provide related repair parts such as diaphragms, coils, etc. without the provision of pulse valve products. If you have any questions about dust removal, please let us know and we will give you a solution that will help you.
