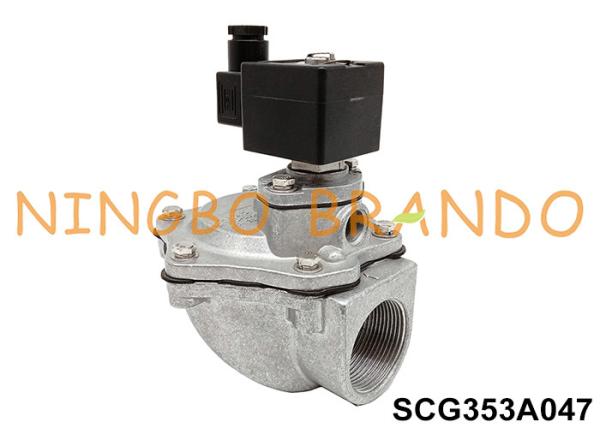

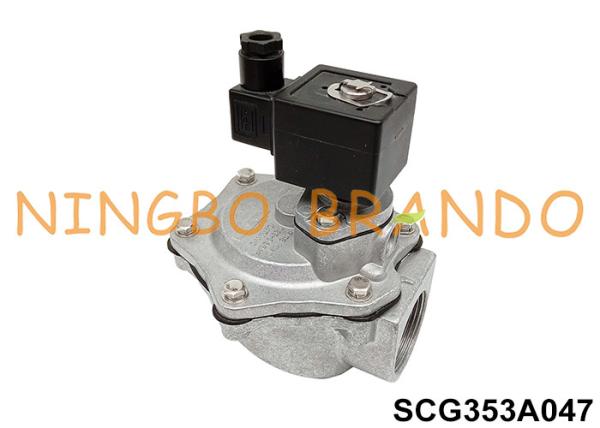

1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047
1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047
1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047
1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047
Specifications
Brand Name :
Brando
Model Number :
SCG353A047
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
4-7 days
Packaging Details :
Inner Box, Carton, Pallet
Product Name :
Pulse Jet Valve
Port Size :
1.5''
Remote Or Integral :
Integral Pilot
Body Material :
Aluminum Diecast
Diaphragm Material :
NBR (TPE on request)
Pressure Range :
0.3 to 0.8MPa
Valve Type :
Right Angle
Voltages :
220V AC, 24V DC
Description

1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047 ​

353 Series ASCO Type Pulse Jet Valve:

1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051.

2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045.

3. Immersion Pulse Jet Valve: SCXE353.060.

Pulse jet valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device.Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Technical Data of 353 Series Pulse Jet Valves:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Dimension of SCG353A047 Pulse Jet Valve:

1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047

Video of SCG353A047 Pulse Jet Valve:

More ASCO Type Pulse Valve For You to Choose:

1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A0471.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A0471.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047

Right Angle Type Remote Pilot Type Immersion Type

1.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A0471.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A0471.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A0471.5 Inch Integral Pilot Pulse Jet Valve For Bag Filter SCG353A047

Diaphragm Solenoid Coil Armature Assembly Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
