SCG353A050 2 ASCO Type Pulse Jet Valve Threaded 353 Series Solenoid Diaphragm
SCG353A050 2 ASCO Type Pulse Jet Valve Threaded 353 Series Solenoid Diaphragm
Specifications
Brand Name :
Brando
Model Number :
SCG353A050
Certification :
CE, ISO
Place of Origin :
NINGBO CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100000 Sets Per Month
Delivery Time :
4 to 7 days
Packaging Details :
Inner Box, Carton, Pallet
Port Size :
2 Inch
Valve Structure :
Threaded Port, Right Angle,
Coil Voltage :
24VDC, 110VAC, 220VAC
Working Pressure Range :
0.35 To 0.85 MPa
Valve Operation :
Diaphragm Pilot Operated
Diaphragm Material :
Nitrile, Viton
Description

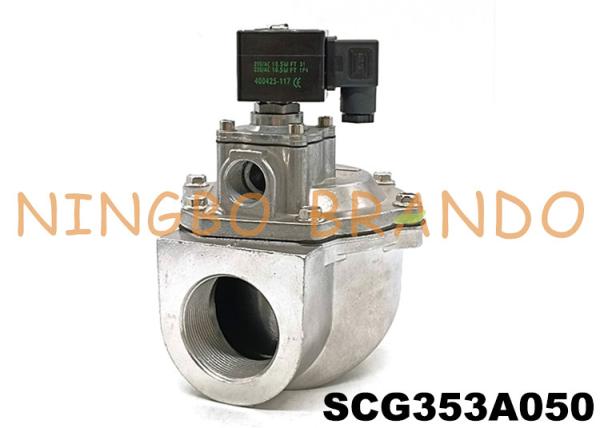

SCG353A050 2" ASCO Type Pulse Jet Valve Threaded 353 Series Solenoid Diaphragm

The threaded 353 series pulse jet valve usually used for bag house, dust collector, bag filter and so on. The valve body and bonnet are die-casting dense, and the surface is covered with transparent paint to improve the anti-corrosion performance. The sealing gasket on the diaphragm is made of metal and rubber, with good rigidity and no leakage. The electromagnetic pilot head has large suction and sensitive and reliable action. The valve has good opening performance and can be opened normally when the rated voltage is 85%.

Technical Data of Threaded Pulse Jet Valves:

Model
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Voltages
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number
1
2
Working Pressure Range
0.35 to 0.85 MPa
Diaphragm Material
TPE, NBR, FKM
Fluids
Air
Valve Structure
Right Angle, Threaded Port

Main Dimension of SCG353A050 Solenoid Pulse Valve:

SCG353A050 2

Video of SCG353A050 Dust Collector Pulse Valve:

More ASCO Type Pulse Valves for you to choose:

SCG353A050 2 SCG353A050 2 SCG353A050 2 SCG353A050 2
Threaded Type Remote Pilot Type Straight Through Type Submerged Type
SCG353A050 2 SCG353A050 2 SCG353A050 2 SCG353A050 2
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller
