CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
Specifications
Brand Name :
Brando
Model Number :
CA25DD
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10000 pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Inner Box, Carton, Pallet
Port Size :
1 Inch
Valve Series :
DD Series
Valve Structure: :
Dresser Nut
Coil Voltages :
DC24V, AC110V, AC220V
Diaphragm Material :
NBR, FKM
Working Pressure Range :
0.35 To 0.85 MPa
Description

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

DD series pulse jet valve is with double head inlet and outlet air port high performance diaphragm valve. Optional with solenoid guide valve
electrically controlled pulse valve or pneumatic pulse valve without pilot valve. These include all bag filters, cartridge filters, envelope filters, ceramic filters and sintered metal fiber filters.

Specification of DD Series Pulse Jet Valves:

Model No
CA20DD
CA25DD
CA45DD
Port Size
3/4''
1''
1 1/2''
Pipe Connection
Dresser Nut
Diaphragm Number
1
1
2
Working Pressure Range
0.35 to 0.85 MPa (5 to 125 PSI)
Diaphragm Material
NBR, FKM, EPDM
Valve Body Material
Aluminum Alloy

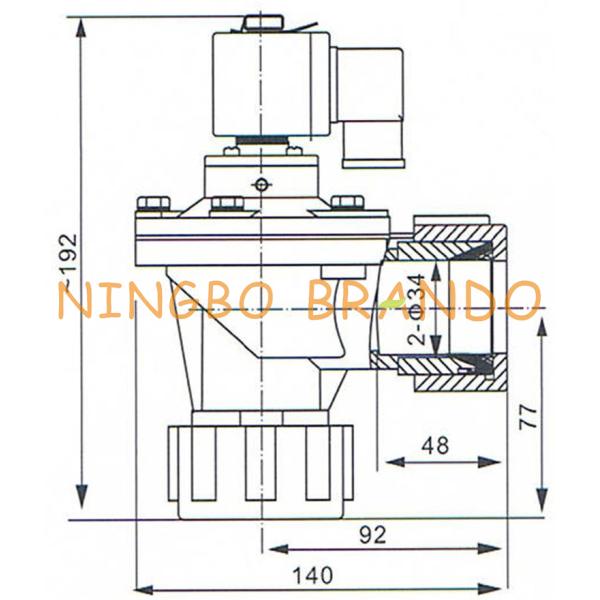

Main Dimension of CA25DD Pulse Jet Valve:

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

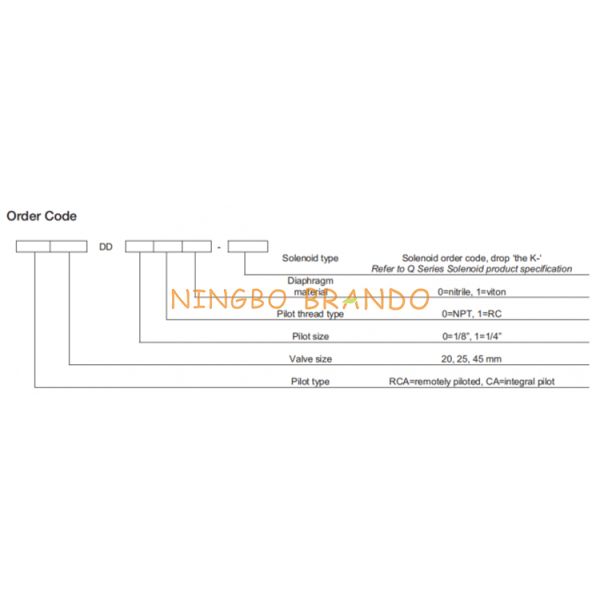

Ordering Code of DD Series Pulse Jet Valve:

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse

Video of CA25DD Pulse Jet Valve:

More Goyen Type Pulse Jet Valves for you to choose:

CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
T Series DD Series FS Series MM Series
CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse CA25DD 1'' Goyen Type Pulse Jet Valve Dresser Nut DD Series For Baghouse
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
