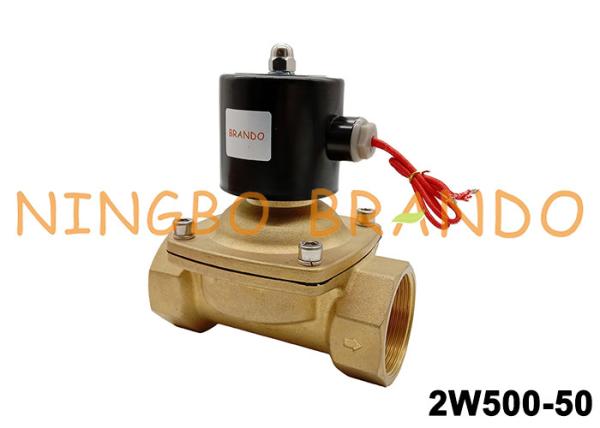

2W500-50 Normally Closed Brass Solenoid Valve AC 220V 2 Inch
2W500-50 Normally Closed Brass Solenoid Valve AC 220V 2 Inch
Specifications
Brand Name :
Brando
Model Number :
2W500-50
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
7 working days
Packaging Details :
inner boxes,cartons,pallets
Valve Series :
2W Series
Ref. Number :
UNI-D Type UW-50
Voltage :
AC110V AV220V DC24V
Action :
Pilot Diaphragm Drive
Port Size :
2' Inch
Media :
Water Air Gas
Fluid Viscossity :
Below 20 CST
Power :
Solenoid
Body Material :
Brass
Diaphragm Material :
NBR, FKM and EPDM
Description

2W500-50 Normally Closed Brass Solenoid Valve AC 220V 2 Inch

2W500-50

2W: 2 Positon 2 Way Solenoid Valve. Solenoid valve has 2 pipe connections, an inlet called the cavity port and an outlet called the body orifice port. When the valve is energized the plunger opens allowing media to flow through the valve in the cavity port and out the body orifice port.Turn off the power. The orifice closes and flow through the valve stops.

500: The Aperture of Flow Rate is 50 mm

50:Joint Pipe Bore is G2 Inch Female Thread

Technical Data of 2W & 2S Solenoid Valve:

2W Series
2W025-08
2W040-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
2W500-50
2S Series
2S025-08
2S040-10
2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Orifice Size
2.5
4
15
20
25
35
40
50
Port Size
1/4''
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Water, Air, Gas, Oil
Action
Direct Acting
Semi-Direct Diaphragm Operated
Function
2 Way, Normally Closed
Fluid Viscosity
20 CST below
Pressure
Range
0 to 1.0 Mpa
Temp. Range
-5 to +85℃

Main dimension of 2W & 2S Series Solenoid Valves:
2W500-50 Normally Closed Brass Solenoid Valve AC 220V 2 Inch

2S Series
2W Series
A
B
C
D
E
2S025-06
2W025-06
64.5
30
75
43
1/8''
2S025-08
2W025-08
64.5
30
75
43
1/4''
2S040-10
2W040-10
70.6
32
82.4
53
3/8''
2S160-10
2W160-10
101.5
57
117
69
3/8''
2S160-15
2W160-15
101.5
57
117
69
1/2''
2S200-20
2W200-20
107
57
123.5
73
3/4''
2S250-25
2W250-25
111.5
73.5
134.5
99
1''
2S350-35
2W350-35
142
95
172
123
1-1/4''
2S400-40
2W400-40
142
95
172
123
1-1/2''
2S500-50
2W500-50
172
123
209
168
2''


UW Series is pilot diaphragm , normally closed, with 2'' Inch port .UW series can be operated directly without pressure.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
