4V430C-15 1/2'' Airtac Type Pneumatic Valve Close Center 220V AC
4V430C-15 1/2'' Airtac Type Pneumatic Valve Close Center 220V AC
Specifications
Brand Name :
BRANDO
Model Number :
4V430C-15
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Plastic bag, Box, Carton, Pallet
Product Name :
Pneumatic Solenoid Valve
Port Size :
In=Out=Exhaust=1/2''
Fluid :
Air
Valve Type :
5 Way 2 Position
Operating Pressure :
0.15 To 0.8 MPa
Proof Pressure :
1.2MPa
Body Material :
Aluminum Alloy
Coil Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

4V430C-15 1/2'' Airtac Type Pneumatic Valve Close Center 220V AC

Product Features:


1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Three position Solenoid Air Valves have three kinds of central function for your choice;
4. Double control Solenoid Air Valves have memory function;
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
6. No need to add oil for lubrication;
7. It is available to form integrated valve group with the base to save installation space;
8. Affiliated manual devices are equipped to facilitate installation and debugging;
9. Several standard voltage grades are optional;

Technical Data of 4V400 Series Solenoid Valve:

Model
4V410-15
4V420-15
4V430C-15
4V430E-15
4V430P-15
Fluid
Air (to be filtered by 40μm filter element)
Acting
internal pilot or external pilot
Port Size
in=out=exhaust=1/2''
Orifice Size
4V410-15, 4V420-15: 48.0mm² (Cv=2.82)
4V430C-15: 40.0mm² (Cv=2.35)
Valve Type
5 way 2 position
5 way 3 position
Operating Pressure
0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure
1.2MPa (175psi)
Temperature
-20 to 70℃
Body Material
Aluminum Alloy
Max Frequency
3 cycle/sec
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

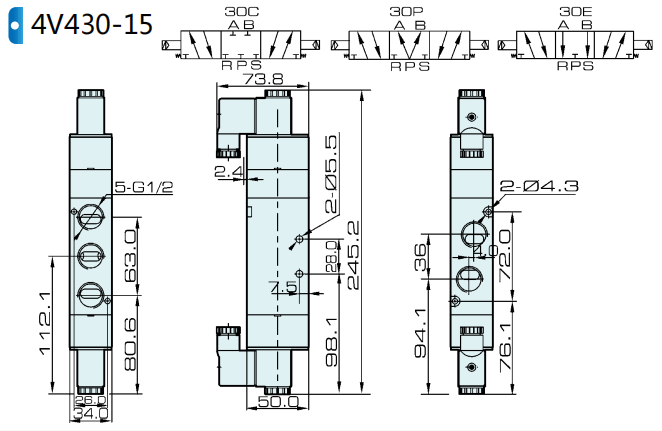

Main Dimension of 4V430C-15 Solenoid Valve:

4V430C-15 1/2'' Airtac Type Pneumatic Valve Close Center 220V AC

Video of 4V430C-15 Solenoid Valve:

Production Video of Pneumatic Valve:

More Pneumatic Products for you to choose:

Pneumatic Solenoid Valve Air Pilot Pneumatic Valve Push Pull Air Valve Hand Level Air Valve
Pneumatic Food Pedal Valve Pneumatic Hose Fitting Filter Regulator Lubricator Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
