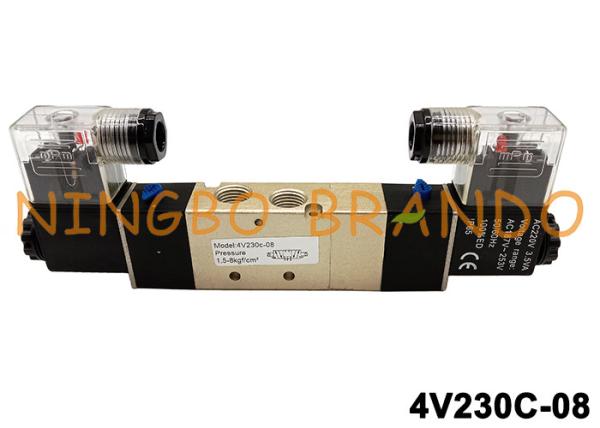

AirTAC Type PT1/4 4V230C-08 Solenoid Valve 220V AC 24V DC 5/3 Way
AirTAC Type PT1/4 4V230C-08 Solenoid Valve 220V AC 24V DC 5/3 Way
Specifications
Brand Name :
BRANDO
Model Number :
4V230C-08
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Plastic bag, Box, Carton, Pallet
Product Name :
Pneumatic Solenoid Valve
Working Fluid :
Air (to Be Filtered By 40 μm Filter Element)
Valve Type :
5 Way 3 Position
Port Size :
In=Out=1/4'', Exhaust=1/8''
Operating Pressure :
0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure :
1.2MPa (175psi)
Body Material :
Aluminum Alloy
Coil Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

AirTAC Type PT1/4 4V230C-08 Solenoid Valve 220V AC 24V DC 5/3 Way

Solenoid valves are an efficient method of converting electrical signals into pneumatic functions. Applying electricity to the solenoid quickly directs air through the valve and into the circuit.

Valves can be designated as internally piloted or externally piloted. Externally piloted valves use an external source of air pressure. Internally piloted use an internal source of air pressure.

Solenoid valves are controlled by the action of the solenoid and typically control the flow of water or air as a switch. If the solenoid is active (current is applied), it opens the valve. If the solenoid is inactive (current does not exist) , the valve stays closed.

Technical Data of 4V200 Series Solenoid Valve:

Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air (to be filtered by 40 μm filter element)
Acting
internal pilot or external pilot
Port Size
in=out=exhaust=1/8''
in=out=1/4'', exhaust=1/8''
Orifice Size
4V210-08, 4V220-08: 17.0mm² (Cv=1.0)
4V230C-08: 13.6mm² (Cv=0.8)
Vlave Type
5 way 2 position
5 way 3 postion
5 way 2 position
5 way 3 position
Operating Pressure
0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure
1.2MPa (175psi)
Temperature
-20 to +70℃
Body Material
Aluminum Alloy
Max Frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC


Main Dimension of 4V230C-08 Solenoid Valve:

AirTAC Type PT1/4 4V230C-08 Solenoid Valve 220V AC 24V DC 5/3 Way

Production Video of Pneumatic Valve:

More Pneumatic Products for you to choose:

Pneumatic Solenoid Valve Air Pilot Pneumatic Valve Push Pull Air Valve Hand Level Air Valve
Pneumatic Food Pedal Valve Pneumatic Hose Fitting Filter Regulator Lubricator Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
