Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
Specifications
Brand Name :
BRANDO
Model Number :
4TB-4U
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
20 to 30 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
4 Way Reversing Valve
D Port Size :
8.1mm (5/16'')
E.S.C Port Size :
9.6mm (3/8'')
Power :
0.75 to 1.5HP
Applicable Refrigerant :
R22, R407C, R410A, etc
Application :
Heat Pump, Air Conditioning, etc
Voltage :
24VDC, 24VAC, 110VAC, 220VAC
Description

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

The 4 way reversing valves are used in reversible applications such as heat pumps or reversible air conditioning units and chillers. The 4 way reversing valve allows an inversion of the refrigeration cycle, changing from cooling mode in Summer to heating mode in Winter.

Technical Data:

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V
Model No
Orifice Size
(mm)
Port Size
(mm)
Operating Pressure Difference (MPa)
Internal Leakage (ml/min)
P=1MPa at 70℃
Power
(HP)
D
E.S.C
Min
Max
4TB-4U
8
8.1
9.6
0.25
2.5
＜1000
0.75 to 1.5
4TB-9U
11
9.6
12.8
0.34
2.25
＜1500
2 to 3
4TB-11
11.5
12.8
16
0.34
2.25
＜2000
2.5 to 4
4TB-11U
11.5
9.6
16
0.34
2.25
＜2000
2.5 to 4
4TB-20
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-20U
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-34
20
19.05
22.2
0.34
2.25
＜6000
7.5 to 12
4TB-45
23
22.2
28.5
0.34
2.76
＜6000
5 to 15
25.6
28.5
34.9
0.34
2.76
＜6000
5 to 20

Working Principle:

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

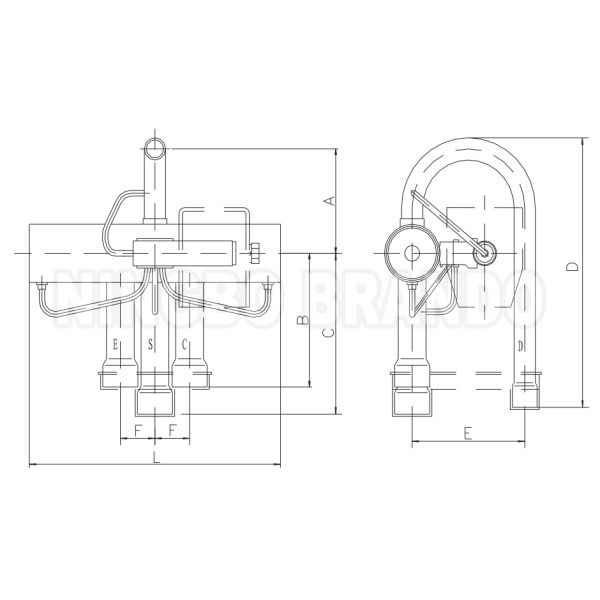

Structure:

Refrigeration 4 Way Reversing Valve For Heat Pump Air Conditioning 220V 110V 24V

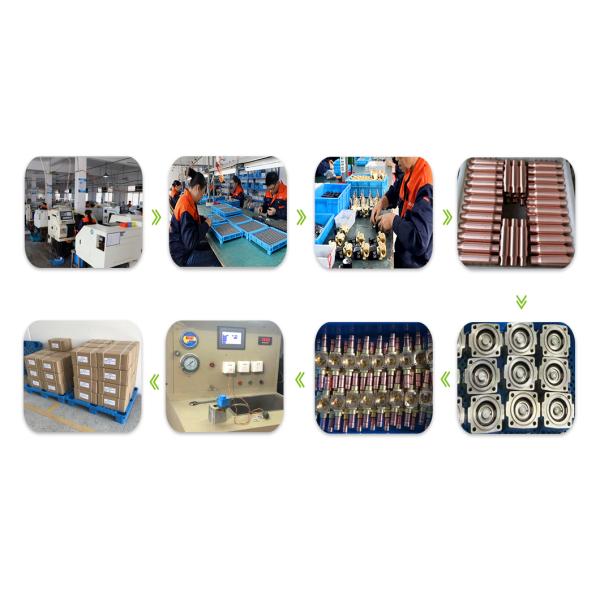

Our Production:
