1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
FF1C25B25
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
4 pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
10 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Anti Corrosive Solenoid Valve
Port Size :
1''
Orifice Size :
25mm
Body Material :
CPVC
Seal Material :
EPDM, FKM
Working Media :
Chemical, Acid, Alkali, Corrosive Liquids, etc
Working Pressure :
0.01 to 0.6 MPa
Operation :
Piston Pilot Operated
Function :
2/2 Way Normally Closed
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

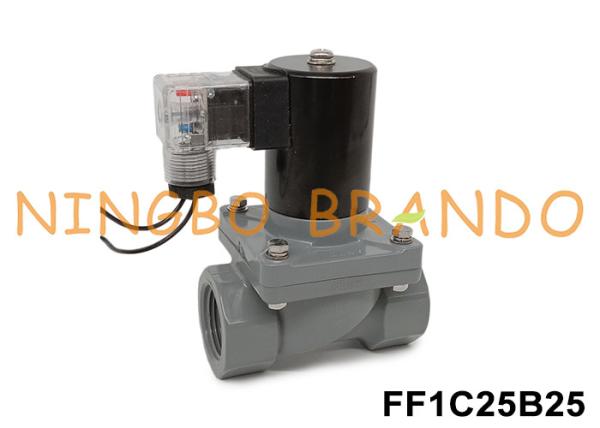

1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V

This is an anti corrosive CPVC solenoid valve, 1'' female threaded port size, 25mm orifice size, 2/2 way normally closed, pilot piston operated, 0.01 to 0.6 MPa working pressure, can be EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Model No
Orifice Size
Port Size
Cv
Working Pressure
Body
Seal
Function
Voltage
FF1C15B04
15mm
1/2''
4
0.1 to 6 bar
CPVC
EPDM
FKM
2 Way NC
12VDC
24VDC
24VAC
110VAC
220VAC
FF1C20B06
20mm
3/4''
5.5
FF1C25B25
25mm
1''
13
FF1C32B32
32mm
1-1/4''
17
FF1C40B40
40mm
1-1/2''
25
FF1C50B50
50mm
2''
40

Main Dimension:

1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V

Model No
Port
A
B
C
D
E
F
FF1C15B04
1/2''
74
132
92
63.5
63.5
16
FF1C20B06
3/4''
80
137
92
63.5
63.5
19
FF1C25B25
1''
100
147
92
74
74
26
FF1C32B32
1-1/4''
120
171
94
94
94
30
FF1C40B40
1-1/2''
130
180
94
94
94
32.5
FF1C50B50
2''
172
225
94
155
155
42

Our Production:

1'' DN25 Anti Corrosive Solenoid Valve With CPVC Body 24V 110V 220V

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
