3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V
3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V
3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V
3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V
Specifications
Brand Name :
BRANDO
Model Number :
3-8V5
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Pilot Valve Enclosure
Operating Pressure :
0 to 125 PSI
Pilot Valve Port Thread :
NPT1/8''
Enclosure Conduit Thread :
NPT3/4''
Enclosure Size :
8
Number of Pilots :
5
Enclosure Body Material :
Aluminum (diecast)
Seal Material :
NBR (Standard), FKM (Optional)
Coil Type :
QT2 (Screw / Spade)
Supply Voltage :
24VDC, 24VAC, 110VAC, 220VAC
Ref No :
RCA3-8V5000-330, RCA3-8V5000-336, RCA3-8V5000-331, RCA3-8V5000-332, 3-8V5000-330, 3-8V5000-336, 3-8V5000-331, 3-8V5000-332
Description

3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V

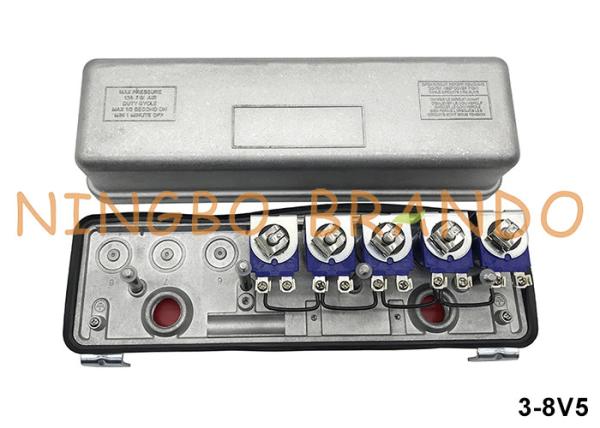

This is a 3-8V5 (RCA3-8V5) diecast aluminum enclosure with 5pcs RCA3D pilot valves inside. The reference number of this enclosure is RCA3-8V5000-330, RCA3-8V5000-336, RCA3-8V5000-331, RCA3-8V5000-332, 3-8V5000-330, 3-8V5000-336, 3-8V5000-331, 3-8V5000-332, etc. The coil voltage can be 220VAC, 110VAC, 24VAC or 24VDC. The enclosures for non-hazardous locations offer reliable protection for your pilot valves and remote actuators. The enclosures were specifically designed for convenient piloting of dust collector cleaning system pulse jet valves.

Ordering Code:

3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V

Main Dimension:

3-8V5 Goyen Type Solenoid Pilot Valve Enclosure Box RCA3-8V5 220V 110V 24V

RCA3D Valve Options:

Model
Port Size
Coil Type
Voltage
Power
RCA3D0-330
(Old RCA3D2-T-QT/1392B)
1/8'' NPT
QT2
(Screw / Spade)
200/240V 50/60Hz
17.4/22.6VA
RCA3D0-331
(Old RCA3D2-T-QT/1004B)
100/120V 50/60Hz
15.2/149.7VA
RCA3D0-332
24V 50/60Hz
23.1/17.2VA
RCA3D0-333
240V DC
24W
RCA3D0-334
110V DC
24W
RCA3D0-335
48V DC
20W
RCA3D0-336
(Old RCA3D2-T-QT/764B)
24V DC
20W
RCA3D0-337
(Old RCA3D2-T-QT/1295B)
12V DC
20W
RCA3D1-330
(Old RCA3D2-T-QT/880B)
1/8'' BSPP
200/240V 50/60Hz
17.4/22.6VA
RCA3D1-331
(Old RCA3D2-T-QT/869B)
100/120V 50/60Hz
15.2/149.7VA
RCA3D1-332
(Old RCA3D2-T-QT/1117B)
24V 50/60Hz
23.1/17.2VA
RCA3D1-333
240V DC
24W
RCA3D1-334
110V DC
24W
RCA3D1-335
48V DC
20W
RCA3D1-336
(Old RCA3D2-T-QT/1051B)
24V DC
20W
RCA3D1-337
12V DC
20W
