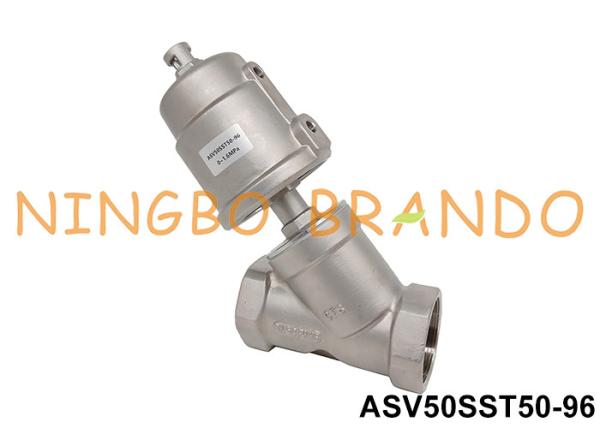

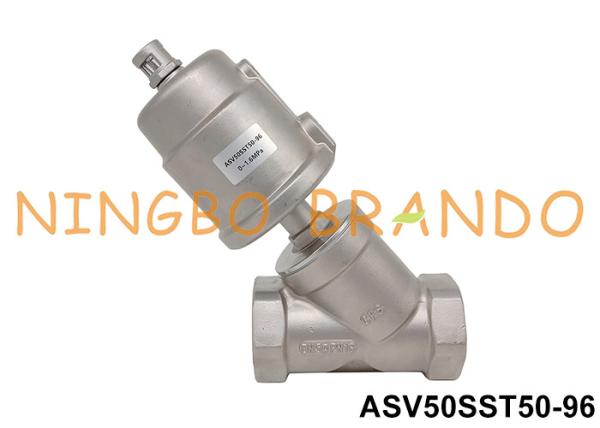

2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
Specifications
Brand Name :
Brando
Model Number :
JZF-DN50-SS
Certification :
CE
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner boxes, Carton, Pallet
Port Size :
2''
Port Connections :
Threaded
Orifice Size :
50mm
Working Fluids :
Netral and Aggressive Liquid, Gas
Body Material :
SS304, SS316
Seal Material :
PTFE
Working Pressure Range :
0.4 to 0.8 MPa
Max. Working Pressure Range :
1.6 MPa
Description

2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated

The pneumatic angle seat valve is an air operated linear process control valve that has an angled body to provide the maximum possible flow rate with minimal pressure loss across the piston valve when open. A piston actuator is connected to the valve plug and is available with either double acting or single acting function.

The piston valve bodies are typically available in bronze or stainless steel with various port sizes, pneumatic piston actuator sizes and materials plus a variety of extra facilities such as a stroke inhibitor, electrical position feedback and even fully modulating angle seat valves.

Main Dimension of Angle Seat Valve:

Stainless Steel Body With Stainless Steel Actuator

2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated

Nominal Diameter
Actuator
(mm)
D
R
P
G
H
L
L1
T
DN15
50
62
33.5
1/8''
1/2''
126
137
68
13
DN20
50
62
33.5
3/4''
138
144
75
16
DN25
50
62
33.5
1''
148
156
90
16
DN32
63
76
42
1 1/4''
182
188
110
21
DN40
63
76
42
1 1/2''
182
190
116
21
DN50
63
76
42
2''
195
205
136
22
DN65
80
96
52
2 1/2''
280
252
185
30
DN80
100
114
63
3''
320
280
220
33
DN100
100
114
63
4''
350
300
235
35

Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open

Angle Seat Valve Disassembly Display:

2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated

Brando Factory Valve Production:

More Angle Seat Valves for you to choose:

2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated 2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated 2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated
2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated 2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated 2'' DN50 2/2 Way Pneumatic Angle Seat Valve Piston Operated

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
