SD1231-C-11 YUKEN Type Hydraulic Solenoid Valve Coil DC24V SD1231-C11
SD1231-C-11 YUKEN Type Hydraulic Solenoid Valve Coil DC24V SD1231-C11
Specifications
Brand Name :
BRANDO
Model Number :
BB22248503
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
15 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Hydraulic Solenoid Coil
Voltage :
24VDC
Power :
13W
Connector :
Dual Wires
Ref No :
SD1231-C11, SD1231-C-11, SD1231-C-1120, SD1231-C-1121
Description

SD1231-C-11 YUKEN Type Hydraulic Solenoid Valve Coil DC24V SD1231-C11

This solenoid coil is popularly used in hydraulic solenoid valves. The reference number is SD1231-C11, SD1231-C-11, SD1231-C-1120, SD1231-C-1121. The standard voltage is 24VDC, the standard power is 13W, other voltages and powers can be customized as your request, dual wires. If you have any demands or questions, pls contact us!

Technical Data:

BRANDO Model
BB22248503
Voltage
24VDC
Power
13W
Other voltage and power can be customized
Connector
Dual Wires

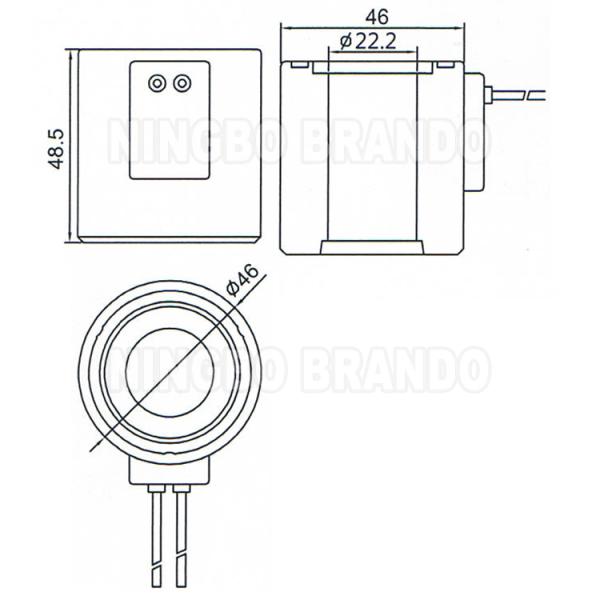

Main Dimension:

SD1231-C-11 YUKEN Type Hydraulic Solenoid Valve Coil DC24V SD1231-C11

Our Production:

SD1231-C-11 YUKEN Type Hydraulic Solenoid Valve Coil DC24V SD1231-C11

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.

More Hydraulic Coils:

SD1231-C-11 YUKEN Type Hydraulic Solenoid Valve Coil DC24V SD1231-C11


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
