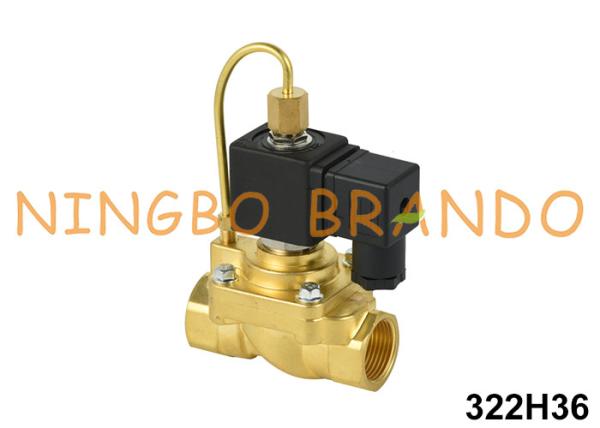

3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
Specifications
Brand Name :
BRANDO
Model Number :
322H36
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Port Size :
3/4''
Orifice Size :
15mm
Function :
2 Way Normally Open
Operation :
Diaphragm Pilot Operated
Body Material :
Brass
Working Medium :
Water, Air, Gas, etc
Pressure Range :
1.5 to 50 bar
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V

Product Features:
1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application examples: bottle blowing machines, laser cutting machines, air compressors, etc

Video of 322H35, 322H36:

Technical Data:​

3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V

Model No (Normally Closed)
321H35
321H36
Model No (Normally Open)
322H35
322H36
Port Size
1/2''
3/4''
Orifice Size
15mm
Function
2 Way Normally Closed, 2 Way Normally Open
Operation
Diaphragm Pilot Operated
Working Medium
Water, Air, Gas
Working Pressure Range
1.5 to 50 Bar
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)


Main Dimension:

3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V

Model No
A
B
C
D
L
H
J
K
M
321H35
1/2''
φ15
27
15
75
101
72
19
53
321H36
3/4''
φ19
32
15
82
107
72
19
53

BRANDO Factory Production Video of Solenoid Valves:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
MAX 50 bar MAX 50 bar MAX 50 bar MAX 50 bar
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
MAX 50 bar MAX 70 bar MAX 120 bar MAX 200 bar

Stainless Steel Solenoid Valves
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
MAX 50 bar MAX 50 bar MAX 50 bar MAX 100 bar
3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V 3/4'' 322H36 NO Brass Solenoid Valve for High Pressure 24V 220V
MAX 120 bar MAX 160 bar MAX 200 bar MAX 300 bar
