MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117
Specifications
Brand Name :
BRANDO
Model Number :
BB14339732
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Coil
Voltage :
220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Power :
10W
Connector :
Three Wires
Ref No :
MP-C-089, 238614-032D, 238614-058D, 238214-032D, 238214-058D, 238714-006D, 238714-902D, 238714-104D, 238714-134D, 238614-058D, 238614-132D, 238614-088D, 238614-158D, 238214-132D
Description

MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117

This MP-C-089 solenoid coil is popularly used in various solenoid valves. The reference number is 238614-032D, 238614-058D, 238214-032D, 238214-058D, 238714-006D, 238714-902D, 238714-104D, 238714-134D, 238614-058D, 238614-132D, 238614-088D, 238614-158D, 238214-132D. The voltage can be 220-240VAC, 110-120VAC, 24VAC, 24VDC, 12VDC, the standard power is 10W, other voltages and powers can be customized as your request. If you have any demands or questions, pls contact us!

Technical Data:

BRANDO Model
BB14339732
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power
10W
Other voltage and power can be customized
Insulation Class
F, H
Connector
Three Wires

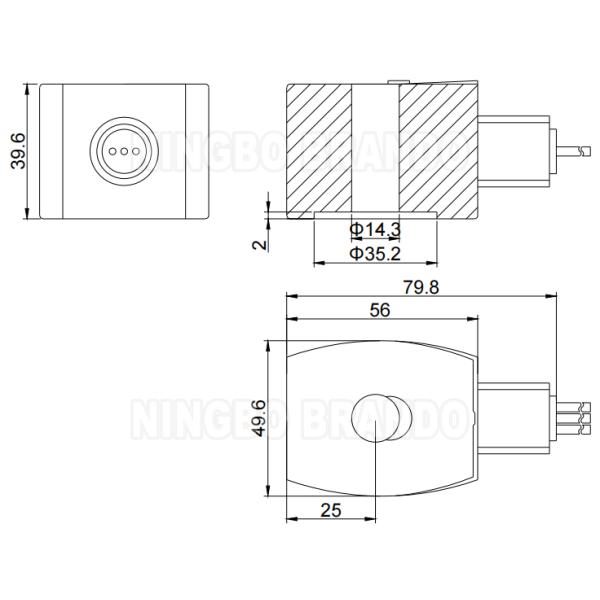

Main Dimension:

MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117

Our Production:

MP-C-089 ASCO Type Solenoid Valve Coil 24VDC 110VAC 220VAC MP-C-117

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
