24 Volt DC Mini Magnetic Solenoid Water Valve Stainless Steel / Brass Material 2W025-08
24 Volt DC Mini Magnetic Solenoid Water Valve Stainless Steel / Brass Material 2W025-08
24 Volt DC Mini Magnetic Solenoid Water Valve Stainless Steel / Brass Material 2W025-08
24 Volt DC Mini Magnetic Solenoid Water Valve Stainless Steel / Brass Material 2W025-08
Specifications
Brand Name :
BRANDO or OEM
Model Number :
2W025-08
Certification :
CE, ISO
Place of Origin :
NINGBO, CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS PER MONTH
Delivery Time :
3 Working days after payment
Packaging Details :
Inner box, carton, pallet
Part Name :
Sprinkler solenoid valve for truck
Material :
Brass
Voltage :
AC DC all available
Port Size :
1/8" 1/4" 3/8"
Type :
2 way 2 position
Acting Type :
Direct
Description

24 Volt DC Mini Magnetic Solenoid Water Valve Stainless Steel / Brass Material 2W025-08

Description:

Start working at differential pressure, the 2W series valve has a completely range of solenoid valves from 1/8" to 2". UW series valve is among the oldest history valves, we have stainless steel valve and brass valve for your reference, both of SS valve and brass valve can be normal close valve and normal open valve. This series solenoid valves are most popular valves used for many conditions especially in the water treatment system.


Two position, two way, normal close switch, magnetic solenoid water valve.
Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
Used to control automatically the liquid and gas in the pipeline.

Code Option:
Thread Option: G and NPT
Standard Voltage Option: DC12V,DC24V,AC110V,AC220V
Material Option: Brass and Stainless Steel
Oil Seal Option: NBR,EPDM,VITON

Parameter:

Part Number 2W025-06 2W025-08 2W040-10 2WH012-06 2WH012-08 2WH020-10
Working medium Air, Gas, Oil, Water
Acting type Direct drive type
Type Normally Close
Orifice 2.5 4 1.2 2
CV Value 0.23 0.60 0.05 0.15
Port Size 1/8" 1/4" 3/8" 1/8" 1/4" 3/8"
Operation fluid viscosity 20 CST Below
Operation pressure 0-7 kgf/cm² 0-20 kgf/cm²
Max.Proof pressure 10 kgf/cm² 35 kgf/cm²
Operation temperature -5 -- 80 ℃
Voltage tolerance + - 10%
Power AC: 7VA/60HZ 9VA/50HZ, DC:6W
Body material brass
Seal material NBR, EPDM, VITON

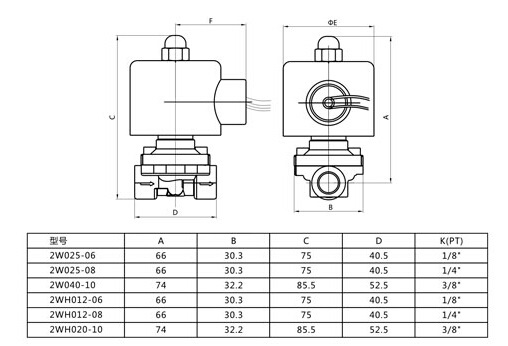

2W series solenoid valve overall dimensions:

24 Volt DC Mini Magnetic Solenoid Water Valve Stainless Steel / Brass Material 2W025-08

Welcome your any enquiry of solenoid valve, we produce many kinds, we will response while we receive your enquiry
