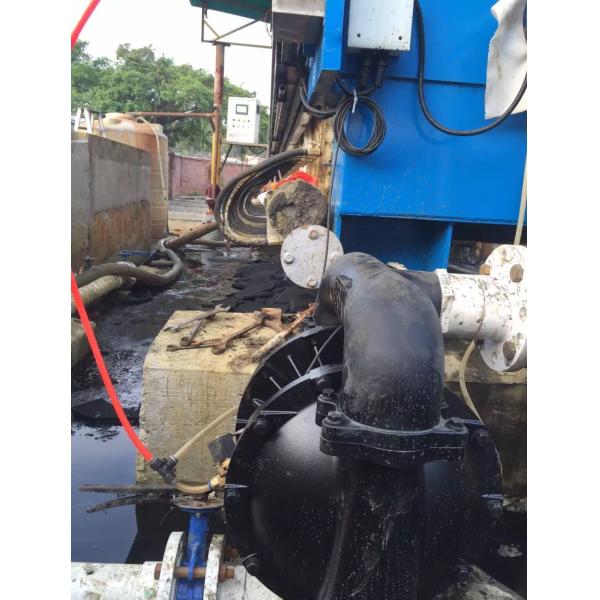

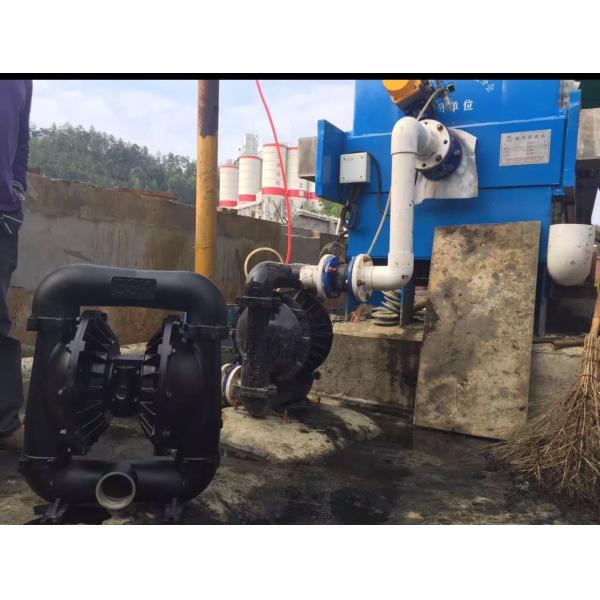

Filter Press Air Operated Double Diaphragm Pump For age Treatment

Air Operated Double Diaphragm Pump Specifications

Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP

Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.

Application and Advantage:

Pneumatic diaphragm pumps are operated with compressed air . diaphragm pumps is suitable for pumping fluids with particles, and various liquids, which are highly viscous, volatile, corrosive or toxic, as well as colloids. The pump body is made of aluminum alloys, cast iron or stainless steel. The diaphragm is made of high quality rubber such as Nitrile rubber, chloronorgutta rubber, fluoroine rubber. The diaphragm pumps are widely used in the petroleum chemical, electronic, ceramic, food and textile industries.

A 80 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ···············································40°- 150°F (4.4- 65.5°C)

Santoprene··········································-40°- 225°F (-40°- 107.2°C) ··················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton·····················································-40°- 350°F (-40°-176.6°C) Hytrel······················································-20°-150°F (-12°- 93°C) Kynar······················································10°-200°F (-28.9°- 65.5°C) Polypropylene·············································32°- 175°F (0-79.4°C)

1” Flow diagram
