Specifications
Brand Name :
Beierte
Model Number :
D1.8m X L10m 8-Layer
Certification :
ISO9001/ABS/BV/LR
Place of Origin :
Qingdao
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
390pcs/ month
Delivery Time :
2-8 days
Packaging Details :
Bare packing, pallet packing, wooden case packing、40GP、40HQ、 40 OT
Name :
Marine Launching Airbag/Ship Launching Airbags
Material :
Natural rubber reinforced cord
Warranty :
2 years
Working pressure :
0.15MPa--0.35MPa
Lifespan :
5-7Years
packaging :
Tray wound stretch film
Color :
Black
Scope of application :
Ship drainage, ship launching, caisson handling, salvage buoy, etc
Description

D1.8m X L10m 8-Layer Vulcanized Integrated Marine Launching Airbag

Marine airbag preparation before use

1. Clear and clean the sharp objects such as iron on the berth to avoid scratching the Marine airbag and causing unnecessary losses.

2. Place the Marine airbags at the bottom of the ship at a predetermined distance and inflate it. Obact the rising state of the ship and the pressure of the air bag at any time.

3. After inflating all Marine airbags, check the state of the air bags again, check whether the ship is balanced, and check whether the berth is clean and tidy.

4. The most important thing for the ship to use the air bag to launch is the stern first, and the stern first introduces the water surface; If it had gone the other way, the propeller at the back of the boat would have scraped the air bag, causing a safety accident.

Marine launching bag performance and specifications

Size Diameter 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m

Effective Length

8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc.
Layer

4layer,5layer,6layer,8layer,10layer,12layer

Remark:

According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different.

If there are special requirements, can be customized.

Diameter Layer Working pressure Working height Guaranteed bearing capacity per unit length(T/M)
D=1.0m 6-8 0.18MPa-0.22MPa 0.5m-0.8m ≥13.7
D=1.2m 6-8 0.17MPa-0.2MPa 0.6m-1.0m ≥16.34
D=1.5m 6-8 0.16Mpa-0.18MPa 0.7m-1.2m ≥18
D=1.8m 6-10 0.15MPa-0.18MPa 0.7m-1.5m ≥20
D=2.0m 8-12 0.17MPa-0.2MPa 0.9m-1.7m ≥21.6
D=2.5m 8-12 0.16MPa-0.19MPa 1.0m-2.0m ≥23

Marine Airbag fittings

D1.8m X L10m 8 Layer Ship Launching Marine Airbags Vulcanized Integrated

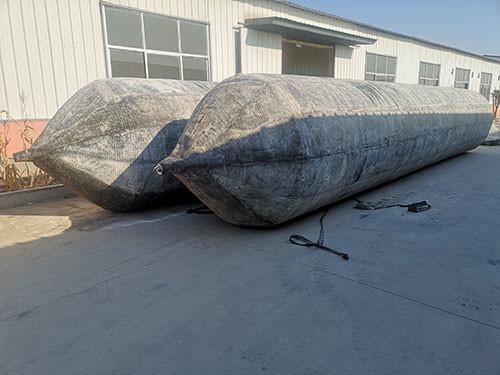

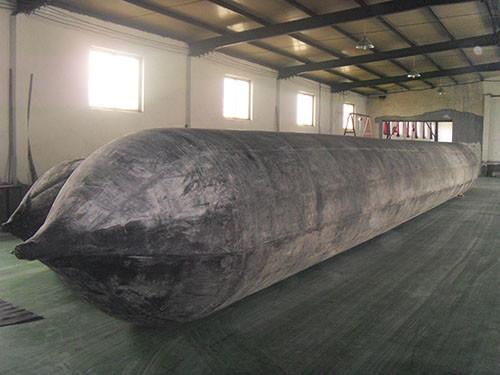

Marine airbag product display

D1.8m X L10m 8 Layer Ship Launching Marine Airbags Vulcanized IntegratedD1.8m X L10m 8 Layer Ship Launching Marine Airbags Vulcanized IntegratedD1.8m X L10m 8 Layer Ship Launching Marine Airbags Vulcanized IntegratedD1.8m X L10m 8 Layer Ship Launching Marine Airbags Vulcanized Integrated

Service tenet:

Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;

Rigorous and pragmatic, considerate; Serve every user attentively.

After-sales service:

1. All products of the company are produced in strict accordance with ISO17357:2014 standards.

2, the company's products in normal use, the life of 8-10 years.

3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.

4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.

5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.

6. Instruct or participate in the implementation and application of products to various projects.

7. Provide pre-sale, in-sale and after-sale services
