Integral Winding Technology Marine Inflatable Fender 50KPa-80KPa

Marine inflatable fender tire chain net selection types are as follows:

Tire chain network is divided into: ordinary car tires, truck tires, airplane tires; Aircraft tires have the most wear resistance (but the cost is relatively higher), the use of chains, shackles must be hot-dip galvanized; The protective pipe should be covered outside the chain, which is to protect the chain from wearing the pneumatic fender body and to protect the hull from damage.

Marine inflatable fender performance table:

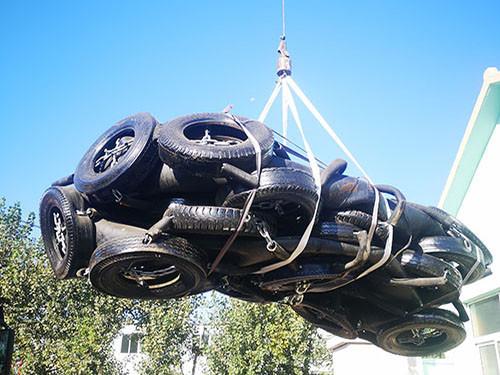

Yokohama pneumatic fender mode of transportation:

Large yokohama pneumatic fender often encounter the problem of over-wide and over-high containers being unable to be shipped during transportation. In fact, we can release the gas on the ship's fender and then fold it, so that neither the container nor the trailer will refuse to ship or increase the high transportation cost due to the over-wide and over-high. But the ship fender deflating manufacturers also need experience, can not blindly deflating

Pneumatic ship fender structure:

Pneumatic ship fender is divided into: inner rubber layer, reinforced cord layer, outer rubber layer.

Function of inner adhesive layer: shape for fender, enhance air tightness and ensure no air leakage.

Enhance connection layer: improve the strength of the transverse fender, increase the tensile strength, increase the pressure.

Outer layer: improve the wear resistance of Marine fender, better protect the inflatable rubber fender body, prolong the service life

Marine inflatable fender structure diagram

Marine pneumatic fender compression test

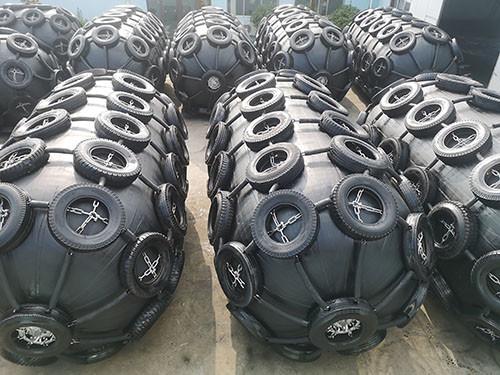

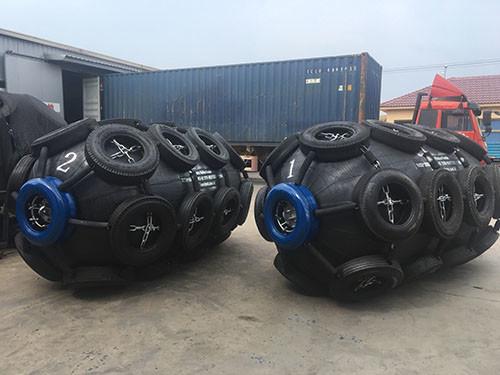

Marine pneumatic fender products display:

Service tenet:

Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;

Rigorous and pragmatic, considerate; Serve every user attentively.

After-sales service:

1. All products of the company are produced in strict accordance with ISO17357:2014 standards.

2, the company's products in normal use, the life of 8-10 years.

3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.

4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.

5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.

6. Instruct or participate in the implementation and application of products to various projects.

7. Provide pre-sale, in-sale and after-sale services
