D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
Specifications
Brand Name :
XINCHNEG
Model Number :
D300*300
Certification :
BV, CCS, LR. RS. SGS, ISO9001:2016
Place of Origin :
QINGDAO
MOQ :
2 PCS
Price :
USD100~1000/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150PCS per month
Delivery Time :
7-12 days
Packaging Details :
Pallet
Application :
Marine/quay/dock/boat
Part :
Rubber Fender
Product name :
Rubber Fender
Color :
Black
Material :
Natural Rubber
Type :
D
Size :
D100*100~D500*500
Lifespan :
8-10 years
Description

D350 Marine Fixed Type Port Rubber D Type Fender For Ship Protection

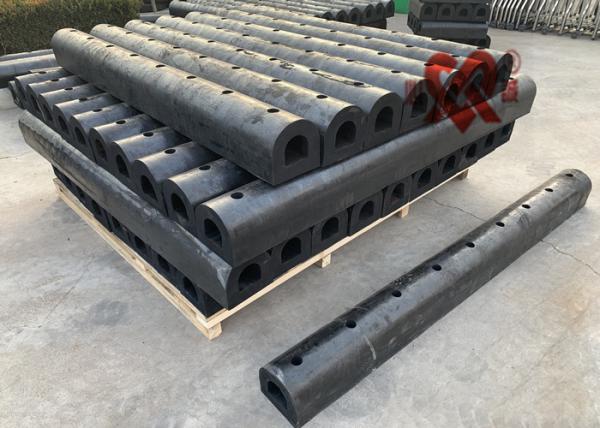

D type rubber fenders, as the most common rubber bumper mounted on ships or docks, boast higher energy absorption than cylindrical fender and reasonable reaction force. D fenders are extruded into small D-shaped structures with punched holes for easy installation and replacements. Normally, they are ideal for following applications: Tugboats, workboats, fishing boats etc.

Wtth reaction force its energy absorption is higher that of cylindrical type.

It can be Installed and replaced easily.

It is widely used due to its narrow bottom width.

Advantags:
1. High energy absorption and low force.
2. High stress dispersion.
3. Good anti-aging properties, high stability and long service time.
4. Easy to be installed and fall off.

D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection

Specification:

Size (mm) Specification
H B L Holes Q c h D d
D150×150×1000 150 150 1000 3 350 150 25 40 24
D200×200×1000 200 200 1000 3 350 150 35 55 30
D200×200×3000 200 200 3000 8 400 100 35 55 30
D250×250×1000 250 250 1000 3 350 150 35 60 30
D250×250×3000 250 250 3000 8 400 100 35 60 30
D300×300×1000 300 300 1000 3 350 150 40 65 32
D300×300×3000 300 300 3000 8 400 100 40 65 32
D300×360×1000 300 360 1000 3 350 150 40 65 32
D300×360×3000 300 360 3000 8 400 100 40 65 40
D400×400×1000 400 400 1000 3 400 150 55 80 32
D400×400×3000 400 400 3000 8 400 100 55 80 40
D500×500×1000 500 500 1000 3 350 150 90 97 45
D500×500×3000 500 500 3000 8 400 100 90 97 45

NOTE: Different sizes of D Type rubber fender can be made follow customer’s request.

Structure:

Accessories of Fenders:

No. Name Material
1 Bolt

Q235, Q235 hot galvanized 0Cr17Ni12M02

1Cr13(2Cr13)1Cr18Ni9Ti,SUS304,SUS316
2 Washer Q235
3 Pre-built-in nut Q235,Q235 hot galvanized 1Cr13(2Cr13) 1Cr18Ni9Ti
4 Foot rod Q235
5 Foot board Q235

D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection

D350 Marine Fixed Type Port D Rubber Fenders For Ship Protection
