Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
Specifications
Brand Name :
XINCHENG
Model Number :
ID300*OD600
Certification :
CCS SGS RS LR BV ISO9001
Place of Origin :
Qingdao
MOQ :
1piece
Price :
$200-6000/piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
150PCS per month
Delivery Time :
15days
Packaging Details :
tray
Hardness :
70-85A
Packing :
Standard Package,By wood pallet,Nude Packing
Part :
Rubber,Boat protector
Warranty :
24 months
Size :
Customized Size
Material :
Natural Rubber
Usage :
Protects ship during ship-to-ship operations or mooring at quay,Rubber damper for port
Application :
ship to ship
Description

Marine Tugboat Cy Type Fenders , Dock Marine Rubber Fender For Boats

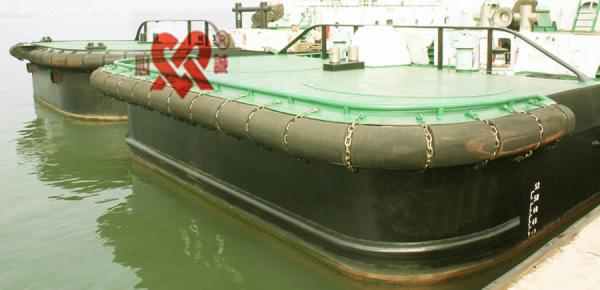

Tugboat Rubber Fender is generally used on the bow and stern of tugboats, workboats, icebreakers and various types of vessel as primary pushing fenders. Its circular shape makes it ideal when working with large bow flares such as container ships, but they are equally suited to pushing flat sided vessels. Available in diameters up to 9000mm and in very long lengths, tugboat rubber fender is fitted to the tug hull with a longitudinal chain running down the fender bore. On larger fenders, these chains are supplemented by circumferential restrains, either sleeved chains or webbing straps, which sit in special grooves moulded into the fender body at interval along its length. The ends of the tugboat rubber fender can be tapered to help fair them into the hull. It is easy to install the grooved body with simple chain, wire or rope.
Features:

    1. Strong and durable structure;
    2. With grooved for chains and straps for easier and firmer attachments;
    3. Round hollow chamber for easier installation;
    4. Suitable to be fasten to the sides, bow and stern of tugboats;
    5. Wide range of sizes and designs.

PRODUCT INTRODUCTION
Specifications:
Type Dimensions (mm) Remarks
ØD Ød b c
300*150*L 300 150 50 25 L can be 3000mm to 2600mm.
300*100*L 300 100 50 25
400*200*L 400 200 50 35
400*150*L 400 150 50 35
400*100*L 400 100 50 35
500*250*L 500 250 60 40
500*220*L 500 220 60 40
500*200*L 500 200 60 40
500*150*L 500 150 60 40
600*300*L 600 300 60 35
600*250*L 600 250 60 50
600*220*L 600 220 60 50
600*200*L 600 200 60 50
700*350*L 700 350 60 50
700*300*L 700 300 60 50
700*250*L 700 250 60 50
700*220*L 700 220 60 50
800*400*L 800 400 70 50
800*350*L 800 350 70 60
800*300*L 800 300 70 60
900*450*L 900 450 70 50
900*400*L 900 400 70 50
900*350*L 900 350 70 50
Note: Other sizes can be made as per customers' request.

Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber

Specification :

Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber

TUG BOAT RUBBER FENDER
Type (mm) OD R1 ID R2 A B C D
300 x 150 x L 300 150 50 25 100 600-900
350 x 175 x L 350 175 50 35 200 600-900
400 x 200 x L 400 200 50 35 200 600-900
500 x 250 x L 500 250 60 40 250 600-900
600 x 300 x L 600 300 60 35 250 600-900
700 x 350 x L 700 350 60 50 300 600-900
800 x 400 x L 800 400 70 50 400 600-900
900 x 450 x L 900 450 70 50 500 600-900
NOTE: other size can be produced follow clients’ need

Rubber Cy Type Tug Boat Fenders With Round Hollow Chamber
