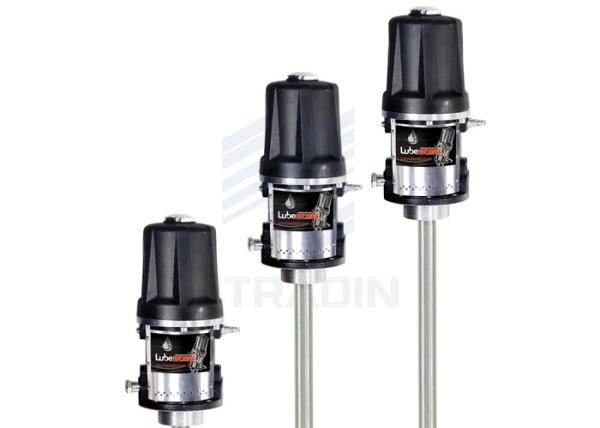

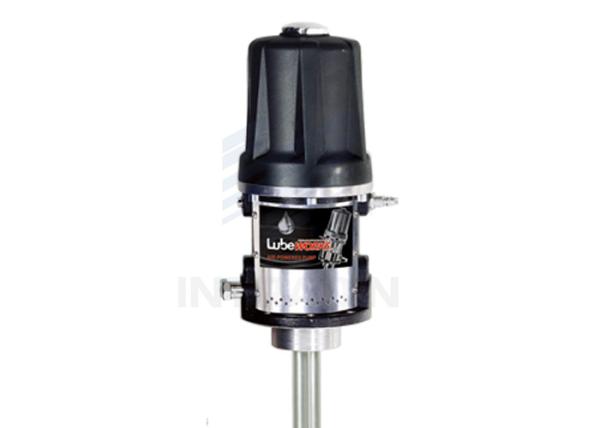

Air Operated High Pressure Grease Pump For Dispensing Short Long Distance
Air Operated High Pressure Grease Pump For Dispensing Short Long Distance
Air Operated High Pressure Grease Pump For Dispensing Short Long Distance
Air Operated High Pressure Grease Pump For Dispensing Short Long Distance
Specifications
Brand Name :
Lubeworks
Model Number :
17127550
Place of Origin :
China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
4,000pcs per month
Delivery Time :
40 working days after received your payment
Packaging Details :
1 piece in carton and pallet
Product Name :
grease pump
Drum Application :
50-60kgs / 120lbs
Pressure Ratio :
75:1
Max. fluid pressure :
900bar / 13500psi
Air motor effective diameter :
76mm / 3"
Suction tube length :
740mm / 29"
Description

High Pressure Pneumatic Grease Pump For Grease Oil Dispensing Short Long Distance

Specifications:

Item No. 17127530/17127532 17127550/17127552 17127560/17127562
Drum application 20-30kgs / 60lbs 50-60kgs / 120lbs 180-220kgs / 400lb
Pressure ratio 75:1 75:1 75:1
Air inlet pressure 5-12bar / 70-180psi 5-12bar / 70-180psi 5-12bar / 70-180psi
Max. fluid pressure 900bar / 13500psi 900bar / 13500psi 900bar / 13500psi
Air motor effective diameter 76mm/ 3" 76mm/ 3" 76mm/ 3"
Air consumption (min) @ 8bar 600L @ 8bar 600L @ 8bar 600L
@ 115psi / 21.6CFM @ 115psi / 21.6CFM @ 115psi / 21.6CFM
Max.free flow rate (min) 1.6Kg/min 1.6Kg/min 1.6Kg/min
Suction tube diameter 32mm / 1-1/4" 32mm / 1-1/4" 32mm / 1-1/4"
Suction tube length 480mm / 19" 740mm / 29" 940mm / 37"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 1/4" BSP/ 1/4" NPT Female 1/ 4" BSP/ 1/4" NPT Female 1/ 4" BSP/ 1/4" NPT Female
Weight 8.8kgs / 19.4lbs 9.8kgs / 21.6lbs 10.7kgs / 23.5lbs
Package size 92×25×19cm 118×25×19cm 139×25×19cm

Description:

75:1 AIR-OPERATED GREASE PUMP 　
Designed for manufacturing or automotive service facilities!
• 75:1 ratio allows grease to be pumped up to NLGI #2
• Double acting pump provides continous flow operation
• Rugged inlet cage withstands demanding shop environments
• Full line of stationary and portable package configurations
• High flow capability, stable function
