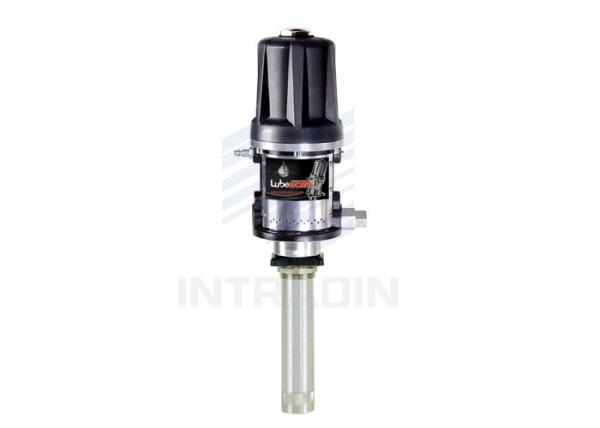

Heavy Duty Oil Transfer Pump Air Operated 50 - 60 Liter Barrel Pumps Pneumatic
Heavy Duty Oil Transfer Pump Air Operated 50 - 60 Liter Barrel Pumps Pneumatic
Heavy Duty Oil Transfer Pump Air Operated 50 - 60 Liter Barrel Pumps Pneumatic
Heavy Duty Oil Transfer Pump Air Operated 50 - 60 Liter Barrel Pumps Pneumatic
Specifications
Brand Name :
Lubeworks
Model Number :
17130331
Place of Origin :
China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
4,000pcs per month
Delivery Time :
40 working days after received your payment
Packaging Details :
1 piece in carton and pallet
Product Name :
Oil pump
Drum Application :
50-60L / 13-16gallon
Pressure Ratio :
3:1
Air Inlet Pressure :
5-12bar / 70-180psi
Max.fluid pressure :
36bar / 520psi
Max.free flow rate(min) :
45L / 12gallon
Description

3:1 Heavy Duty Air Operated Fulid Oil Transfer Pneumatic Oil Pump 50-60 Liter Drum Application

3:1 Air operated oil transfer pump

Specifications:

Item No. 17130301/17130303 17130331/17130333 17130361/17130363 17130371/17130373
Drum application Pail 50-60L / 13-16gallon 180-220L / 48-58gallon 1040L / 275gallon
Pressure ratio 3:1 3:1 3:1 3:1
Air inlet pressure 5-12bar / 70-180psi 5-12bar / 70-180psi 5-12bar / 70-180psi 5-12bar / 70-180psi
Max. fluid pressure 36bar / 520psi 36bar / 520psi 36 bar / 520psi 36bar / 520psi
Air motor effective diameter 76mm / 3" 76mm / 3" 76mm / 3" 76mm / 3"
Air consumption (min) @ 8bar 600L @ 8bar 600L @ 8bar 600L @ 8bar 600L
@ 115psi / 21.6CFM @ 115psi / 21.6CFM @ 115psi / 21.6CFM @ 115psi / 21.6CFM
Max.free flow rate (min) 45L / 12gallon 45L / 12gallon 45L/ 12gallon 45L / 12gallon
Suction tube diameter 54mm / 2.1" 54mm / 2.1" 54mm / 2.1" 54mm / 2.1"
Suction tube length 270mm / 11" 730mm/29" 940mm / 37" 1190mm / 46"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 3/4"F 3/4"F 3/4"F 3/4"F
Accessory 3/4"M - 1/2"F reducer 3/4"M - 1/2"F reducer 3/4"M - 1/2"F reducer 3/4"M - 1/2"F reducer
Weight 7.8kgs / 17lbs 9.7kgs / 21lbs 10.5kgs / 23lbs 11.5kgs / 25.3lbs
Package size 72x25x19cm 118x25x19cm 139x25x19cm 165x25x19cm

Description:

• The 3:1 is perfect for fluid oil transfer in high volume and longer distance applications
such as truck shop service fleet facilities and in-plant applications
• Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel,
aluminum and chrome on key components for longer life
• Few moving parts in the air motor assembly means less downtime and low repair cost
• Large air porting design provides efficient use of compressed air supply for continuous
pump operation without icing
