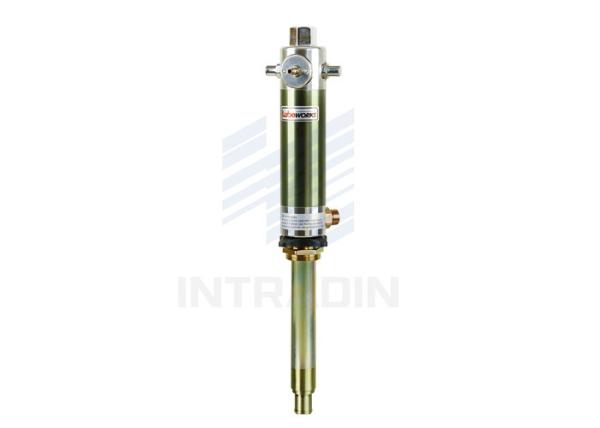

25 Liter Wall Mounted Pneumatic High Flow Rate Transfer Pump Medium Viscosity
25 Liter Wall Mounted Pneumatic High Flow Rate Transfer Pump Medium Viscosity
25 Liter Wall Mounted Pneumatic High Flow Rate Transfer Pump Medium Viscosity
25 Liter Wall Mounted Pneumatic High Flow Rate Transfer Pump Medium Viscosity
Specifications
Brand Name :
Lubeworks
Model Number :
1701054
Place of Origin :
China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
4,000pcs per month
Delivery Time :
40 working days after received your payment
Packaging Details :
1 piece in carton and pallet
Product Name :
Oil pump
Drum Application :
Wall Mounted
Pressure Ratio :
5:1
Flow Rate :
25L / 6.6gallon
Suction Tube Diameter :
42mm / 1.65"
Suction Tube Length :
270mm /10.6"
Description

25 Liter Maximum Free Flow Rate Pneumatic Oil Pump With 5:1 Pressure Ratio

5:1 High Flow Rate transfer pump

Description:

• Air Operated for integration into transfer system
• Typical fluids handled include motor oil, synthetic oil hydraulic
oil, gear oil and automatic transmission fluid
• Flow rate up to 25L/m for oil of low and medium viscosity at
short and medium distance
• Double action
• Suitable for use of oil to SAE240
• Supplied with adjustable 2'' bung adapter

Specifications:

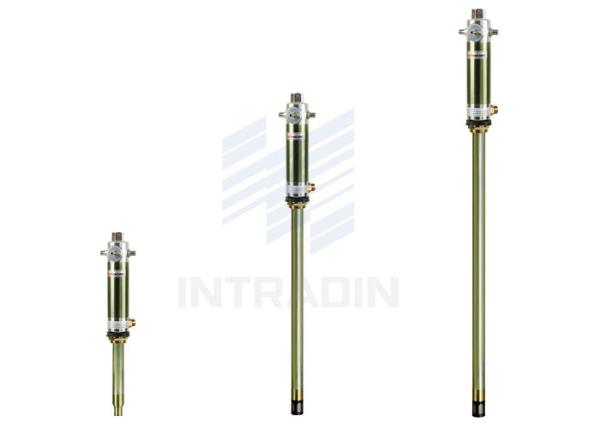

Item No. 1701054 1701055 1701056
Drum application Wall mounted 50-60L / 13-16gallon 180-220L / 48-58gallon
Pressure ratio 5:1 5:1 5:1
Air inlet pressure 5-8bar / 70-115psi 5-8bar / 70-115psi 5-8bar / 70-115psi
Max. fluid pressure 40bar / 580psi 40bar / 580psi 40bar / 580psi
Air motor effective diameter 63mm / 2.49" 63mm / 2.49" 63mm / 2.49"
Air consumption (min) @ 8bar 180L @ 8bar 180L @ 8bar 180L
@ 115psi 6.5CFM @ 115psi 6.5CFM @ 115psi 6.5CFM
Max.free flow rate (min) 25L / 6.6gpm 25L / 6.6gpm 25L / 6.6gpm
Suction tube diameter 42mm / 1.65" 42mm / 1.65" 42mm / 1.65"
Suction tube length 270mm / 10.6" 730mm / 28.7" 940mm / 37"
Air inlet connection 1/4" quick plug 1/4" quick plug 1/4" quick plug
1/4" NPT Female 1/4" NPT Female 1/4" NPT Female
Oil outlet connection 3/4" M 3/4" M 3/4" M
Weight 5kgs / 11lbs 5.5kgs / 12lbs 6kgs / 13lbs
Package size 13x13x73cm 13x13x117cm 13x13x137cm
