Specifications
Brand Name :
Fuelworks
Model Number :
FM005/006/007
Certification :
ATEX
Place of Origin :
China
MOQ :
100pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
6,000pcs per month
Delivery Time :
40 working days after received your payment
Packaging Details :
carton and pallet
Product Name :
EXPLOSION PROOF DIGITAL FUEL METER
Inlet Connection :
3/4";1/2",1"
Flow Rate :
1~35L/min; 6~100L/min ;15~120L/min
Max Pressure :
0.5~10BAR
Weight :
0.61kgs / 1.34lbs
Package :
13x10.5x10cm
Description

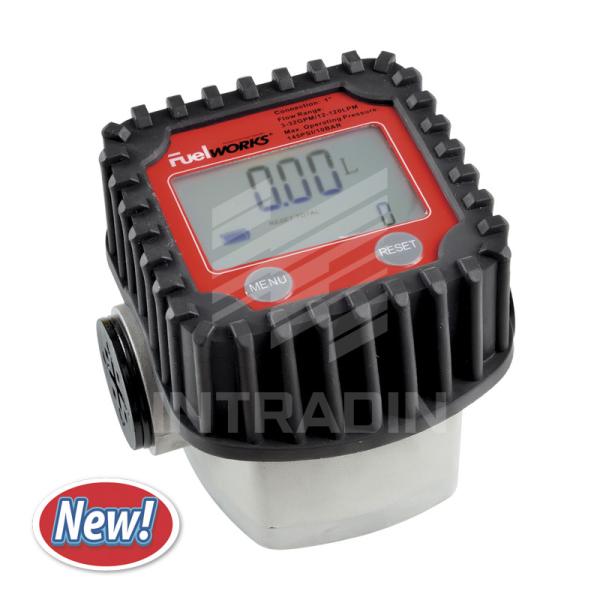

EXPLOSION PROOF DIGITAL METERS
Intradin’s latest product development of the explosion-proof digital meters solutions are suitable for managing diesel, bio diesel, kerosene, oil, gear oil, gear box oil and hydraulic oil, etc.
Intradin is one of the leading global providers of highly accurate, robust flow meters for smart process fluid management applications.


KEY FEATURES:
Meet the ATEX directives for explosion proof
Variable display orientation
High accuracy for ±0.5%
Large easy to read digital display
IP65 water proof for outdoor use
Robust build for long service life

• Equipped with a large screen that can be adjusted to various positions for easy reading.
• Low battery indicator is equipped.
• Power source: 2x1.5V (AAAA) battery.
• Meter accuracy ±0.5%.
• Fluid type: gasoline & diesel.

Specifications:

Series No. Pump Rate Max. Pressure Inlet / Oulet Package Weight
FM005.01/FM005.08 1~35L/min 0.5~10BAR 1/2"BSP female 13x10.5x10cm 0.61kgs
FM006.01/FM006.05 6~100L/min 0.5~10BAR 3/4"BSP female 13x10.5x10cm 0.91kgs
FM007.01/FM007.05 15~120L/min 0.5~10BAR 1"BSP female 13x10.5x10cm 0.88kgs
FM005.03 0.3~9.25Gal/min 7~150PSI 1/2"NPT female 5.1"x4.1"x3.9" 1.34lbs
FM006.02 1.6~26Gal/min 7~150PSI 3/4"NPT female 5.1"x4.1"x3.9" 2.00lbs
FM007.02 3.9~32Gal/min 7~150PSI 1"NPT female 5.1"x4.1"x3.9" 1.94lbs
