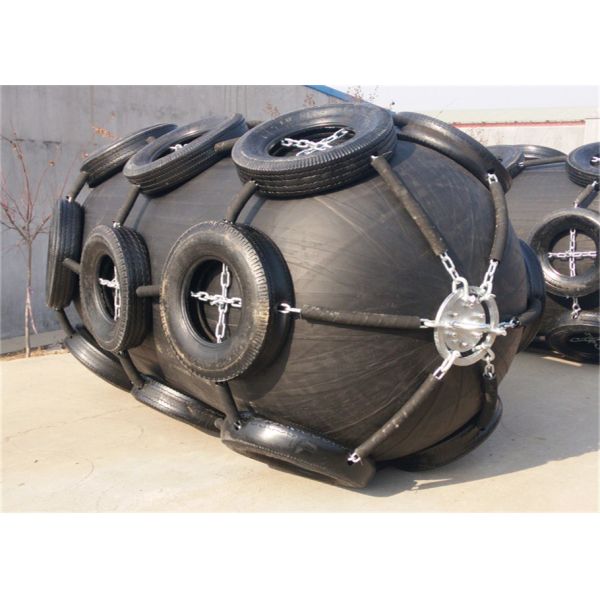

Yokohama 2x3.5m Pneumatic Rubber Fender

Yokohama 2x3.5m Pneumatic Rubber Fender Introduction

Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.

Yokohama 2x3.5m Pneumatic Rubber Fender Parameter

Yokohama 2x3.5m Pneumatic Rubber Fender Parameter

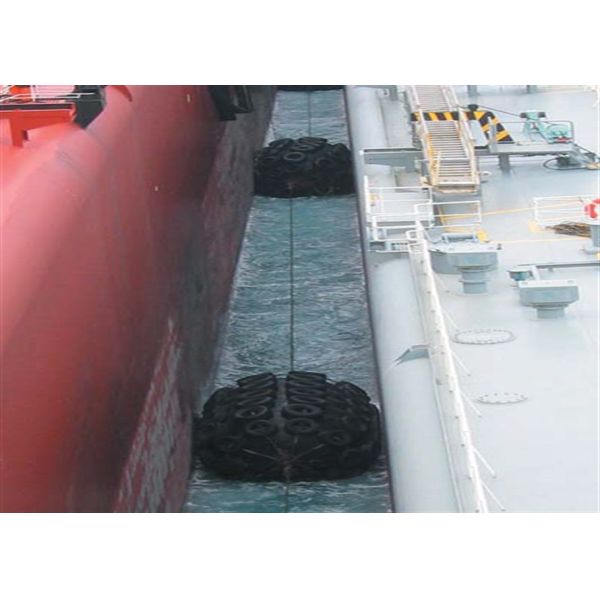

Yokohama 2x3.5m Pneumatic Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier

Yokohama 2x3.5m Pneumatic Rubber Fender Features

1. Safety and Reliability

Boat Rubber Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

2. No Deterioration or Variation in Performance

Boat Rubber Fender utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent.

3. Advantages at Inclined Berthing

Boat Rubber Fender, energy absorption does not decrease at inclined compression up to 15 degrees.

4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Boat Rubber Fender ideal. The surface pressure of the Boat Rubber Fender is equal to the internal air pressure. Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals.

5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Pneumatic Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Boat Rubber Fender perform well in such cases, and protect ships and mooring facilities.

6. Lower Mooring Forces under Rough Weather Conditions

The reaction force and deflection of Boat Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather.

Yokohama 2x3.5m Pneumatic Rubber Fender Storage

1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

Yokohama 2x3.5m Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
