Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels
Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels
Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels
Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels
Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels
Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels
Specifications
Brand Name :
Henger
Model Number :
Can Be Customized According to Customer Needs ，Minimum diameter 500mm
Certification :
International Quality Management System ISO9001:2000 , Chinese Classification Society ( CCS ) , Det Norske Veritas ( DNV ) , British Lowe ( LR )
Place of Origin :
China
MOQ :
1 PC
Price :
5000-10000 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Factory direct supply
Delivery Time :
7-15 working days
Packaging Details :
nude packing or customized
Material :
Natural Rubber
Color :
Black
Protective Sleeve :
tyre-chain net, rubber tube for option
Lifespan :
6-10 years
IP :
50KPa/80KPa (0.05MPa/0.08MPa)
Warranty :
12 months/24 months
Application :
docking anti-collision
Diameter :
0.5-6m
Length :
1-10m
Key Word :
Ribbed Pneumatic Fenders
Description

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

1. Company Profile

Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier.

All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

2. Pneumatic Rubber Fender Introduction
The Pneumatic Rubber Fender was invented in 1950s. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Pneumatic rubber fenders are widely used in oil tank, cargo ship, yacht, offshore platform, big shipyard, military harbors, huge bridge piers.
Compared to traditional solid rubber fender, pneumatic has following advantages
1. Big energy/ impact absorption capacity, small reaction force to ships
2. Easy and fast installation
3. Higher elasticity. It doesn’t get deformation under compression
4. Light weight
5. Economical and practical
Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

3. Tyre-chain Protective Jacket Type Pneumatic Fender Product Show

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

4. Henger Pneumatic Rubber Fender Structure

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

5. Manufacturing Process

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

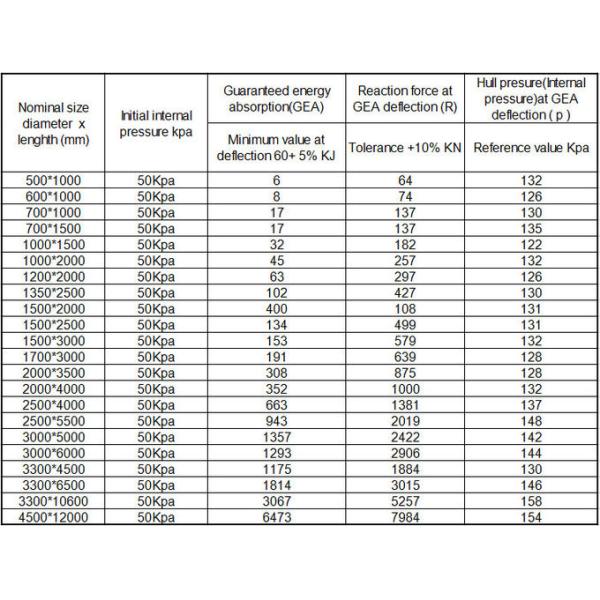

6. Pneumatic Rubber Fender Technical Parameter

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

* 1. above penumatic fenders parameter is based on of 0.05Mpa internal pressure,there is also & 0.08Mpa type for choice, kindly contact our service consultant for more details and competitive prices.
* 2. penumatic fender size could be customized according to customer requirement.
* 3. all accessorires could be customized according to customers' requirement or drawings.
7. Yokohama Floating Pneumatic Marine Rubber Fender Model Selection

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

1. For Small & Middle Size Ship

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship

2. For Large-tonnage Ship

Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)
200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5

8. Yokohama Floating Pneumatic Marine Rubber Fender Application

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

1. large crude oil carrier, VLCC
2. container vessel
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
9.Packing & Delivery

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

* all packing method and shipping method of pneumatic rubber fenders are done as per to csutomer's requirement.

10. Other

Deflated & Foldable Floating Inflatable Marine Rubber Fender for Boats Ships Vessels

11. FAQ

Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.


Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes


Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.
