Specifications
Brand Name :
Henger
Model Number :
2.0*3.5~2.5*4.0
Certification :
CCS BV certification ISO17357 ISO9001,ABS,DNV,LR,CCS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 per month
Delivery Time :
30 working days
Packaging Details :
nude packing or customized
Part :
marine equipments,Flange,Pneumatic Boat Fender,Marine fender,pneumatic rubber fender
Color :
Black,Blue,Black/As Requirements,All color can be accept,Black/White or any color
Material :
Natural Rubber,EPDM,SBR,SILICONE,EVA
Application :
STD,STS,Ships and Boats,Ship fender,Marine/quay/dock/boat
Size :
Customized,D3.3*L6.5m pneumatic rubber fender,ALL,2*3.5m,3.3x6.5m
Name :
pneumatic rubber fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag
Product name :
Pneumatic rubber fender,Marine/Dock fender
Warranty period :
24 months,3 years
Type :
DO,50Kpa,Pneumatic,D,UV-protection
Packing :
Normal packing,Nude Packing/As Requirement,Standard Package
Warranty :
24 months
Diameter :
0.5m-3.3m,0.5~4.5m
Usage :
pneumatic marine fenders cone fender,Protects ship during ship-to-ship operations or mooring at quay,Protect Boat
Length :
0.5m~12.0m,1.0m-6.5m,1~9m
Chain :
312,hot galvanizing or stainless steel(304,316)
Quality :
excellent
Design using life :
10 years
Feature :
Aging Resistance
Description

Tireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock Fender

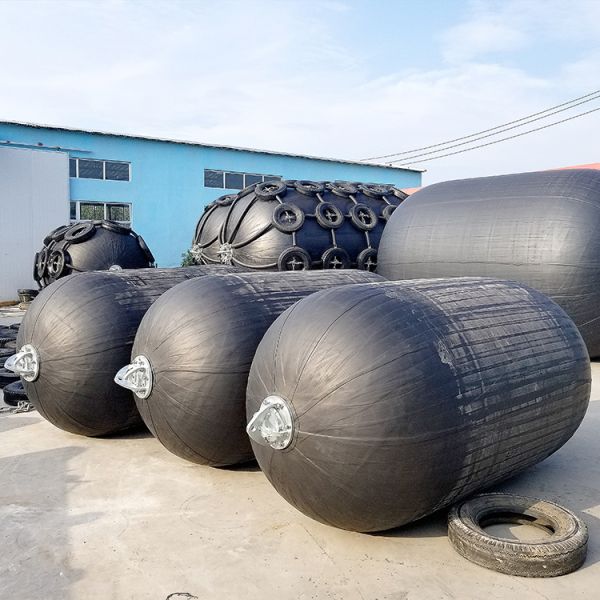

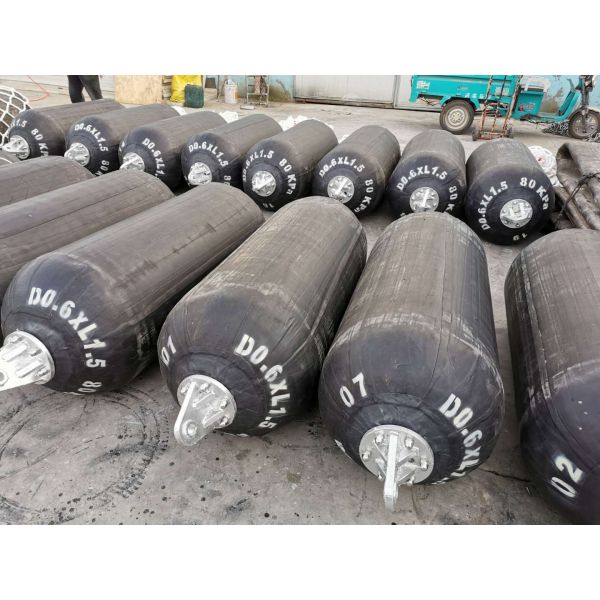

Inflatable rubber fenders (by the ball)
The rubber ball is one of the inflatable fender products, and it is one of the most advanced fender products in the world. It uses compressed air as a buffer medium to absorb the impact energy of the hull, which is similar to the general compressed rubber fender products. It has a special air impact function, so it is an ideal protective equipment for ships when berthing at sea and port terminals.
Tireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock FenderTireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock FenderTireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock Fender

There are two types of inflatable rubber fenders
1. Mesh fender: The fender is covered with a protective net, which consists of chains, wires or optical fibers and is usually used with tires or rubber sleeves.
2. Sling fender: This fender has no protective net, light weight and easy to operate.
Tireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock Fender
Tireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock Fender
Tireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock Fender
Tireless Mesh Sling Rubber Fender Protective Equipment Rubber Dock Fender

Pneumatic rubber fender Parameter

Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

 Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa
500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202




advantage
1. In line with international standards
2. Safer and more reliable
3. Smaller Parking Force
4. Adapt to the tides
5 low maintenance costs
6. Low reactivity and Hull pressure
7. The most cost-effective system
8. Advantages of reducing shear force
9. Simple installation and low cost
10. There are a variety of optional accessories
