Specifications
Brand Name :
Henger
Model Number :
Can Be Customized According to Customer Needs ，Minimum diameter 500mm
Certification :
International Quality Management System ISO9001:2000 , Chinese Classification Society ( CCS ) , Det Norske Veritas ( DNV ) , British Lowe ( LR )
Place of Origin :
China
MOQ :
1 PC
Price :
5000-10000 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Factory direct supply
Delivery Time :
7-15 working days
Packaging Details :
nude packing or customized
Material :
Rubber
Color :
White
Protective Sleeve :
tyre-chain net, rubber tube for option
Lifespan :
6-10 years
IP :
50KPa/80KPa (0.05MPa/0.08MPa)
Warranty :
12 months/24 months
Application :
docking anti-collision
Diameter :
0.5m-6m
Length :
1m-10m
Description

best price rubber fender manufacture and marine cone rubber fender with high quality

1. Pneumatic rubber fender introduction

How does the fender work?

The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.

2. Pneumatic rubber fender Parameter

Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA)Reaction force at GEA deflection(R)Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJTolerance±10 % kN

Reference value

kPa

500 x 100050664132
600 x 100050874126
700 x 15005017137135
1000 x 15005032182122
1000 x 20005045257132
1200 x20005063297126
1350 x 250050102427130
1500 x 300050153579132
1700 x 300050191639128
2000 x 350050308875128
2500 x 4000506631381137
2500 x5500509432019148
3300 x 45005011751884130
3300 x 65005018143015146
3300 x 106005030675257158
4500 x 90005047525747146
4500 x 120005064737984154

3. Pneumatic rubber fender Parameter

Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA)Reaction force at GEA deflection (R)Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJTolerance±10% kN

Reference value

kPa

500 x 100080885174
600 x 1000801198166
700 x 15008024180177
1000 x 15008045239160
1000 x20008063338174
1200 x 20008088390166
1350 x 250080142561170
1500 x 300080214761174
1700 x 300080267840168
2000 x 3500804301150168
2500 x 4000809251815180
2500 x 55008013172653195
3300 x 45008016402476171
3300 x 65008025323961191
3300 x 106008042816907208
4500 x 90008066337551192
4500 x 1200080903710490202

4. Pneumatic Rubber Fender Features

Meet the requirements of ISO17357:2002
2. More secure and reliable
3. Smaller parking force
4. Adapt to the tide
5 Low maintenance costs
6. Low reactivity and Hull pressure
7. The most cost-effective system
8. Advantages of reducing shear force
9. Simple installation and low cost
10. There are many optional accessories.
Rubber Tube Cone Marine Rubber Fender for Docking Anti Collision

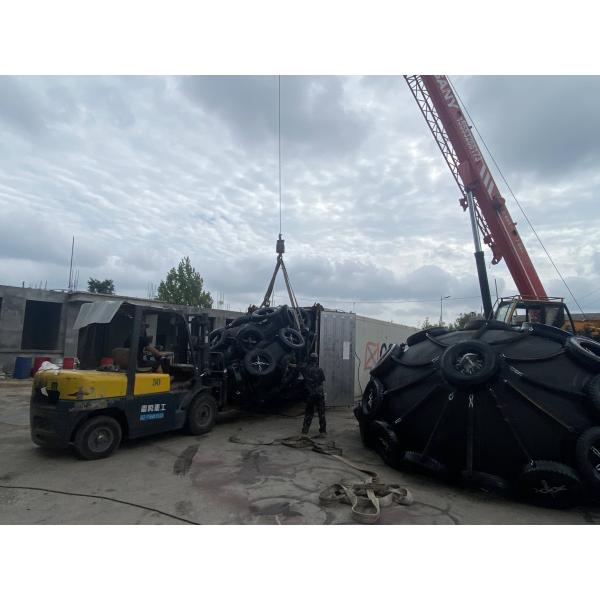

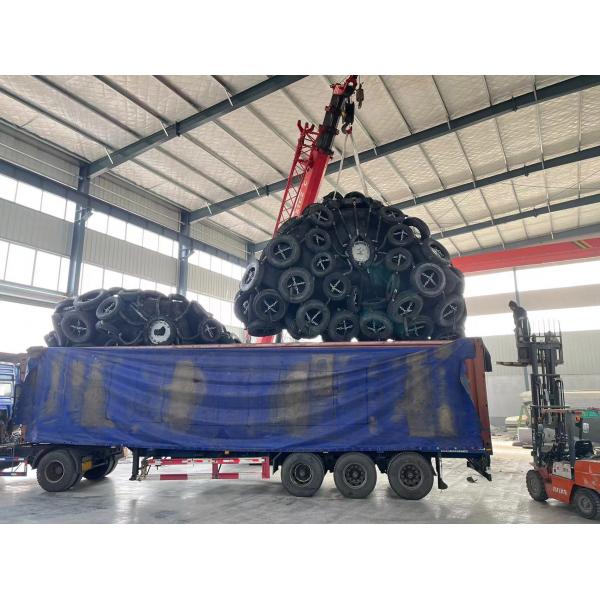

5. Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

Rubber Tube Cone Marine Rubber Fender for Docking Anti Collision

Rubber Tube Cone Marine Rubber Fender for Docking Anti Collision
