Qingdao Henger Shipping Supplies CO., LTD lies in Qingdao,which is a high-tech enterprise integrated with manufacturing, R&D, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

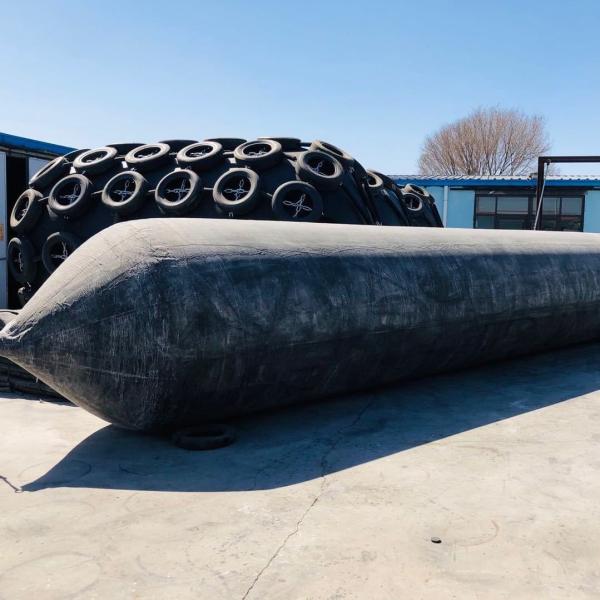

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, upgrading marine salvage buoyancy aid etc. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.
Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
KN/m | Ton/m | |||
D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
0.5m | 157.16 | 16.02 | ||
D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
0.6m | 160.3 | 16.34 | ||
D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
0.8m | 143.03 | 14.58 | ||
0.7m | 163.43 | 16.66 | ||
D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
1.0m | 138.22 | 14.09 | ||
0.9m | 155.59 | 15.86 | ||
0.8m | 172.85 | 17.62 | ||
0.7m | 190.22 | 19.39 | ||
D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
1.1m | 141.46 | 14.42 | ||
1.0m | 157.16 | 16.02 | ||
0.9m | 172.85 | 17.62 | ||
0.8m | 188.64 | 19.23 |
1. High Bearing Capacity
2. High Kneading-resistance Capability
3. New Anti-explosion Design of End Part
4. High strength galvanized anti-release structure
5. Optimizing Structure Configuration
6. Package&Delivery
