Specifications
Brand Name :
Henger
Model Number :
2500mm x 5500mm
Certification :
CCS BV certification ISO17357 ISO9001,ABS,DNV,LR,CCS
Place of Origin :
China
MOQ :
1
Price :
$1000-$1000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
99
Delivery Time :
7-20days
Packaging Details :
Pallet packaging
Part :
marine equipments,Flange,Pneumatic Boat Fender,Marine fender,pneumatic rubber fender
Color :
Black,Blue,Black/As Requirements,All color can be accept,Black/White or any color
Material :
Natural Rubber,EPDM,SBR,SILICONE,EVA
Application :
STD,STS,Ships and Boats,Ship fender,Marine/quay/dock/boat
Size :
Customized,D3.3*L6.5m pneumatic rubber fender,ALL,2*3.5m,3.3x6.5m
Name :
pneumatic rubber fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag
Product name :
Pneumatic rubber fender,Marine/Dock fender
Warranty period :
24 months,3 years
Type :
DO,50Kpa,Pneumatic,D,UV-protection
Packing :
Normal packing,Nude Packing/As Requirement,Standard Package
Warranty :
24 months
Diameter :
0.5m-3.3m,0.5~4.5m
Usage :
pneumatic marine fenders cone fender,Protects ship during ship-to-ship operations or mooring at quay,Protect Boat
Length :
0.5m~12.0m,1.0m-6.5m,1~9m
Chain :
312,hot galvanizing or stainless steel(304,316)
Quality :
excellent
Design using life :
10 years
Feature :
Aging Resistance
Description

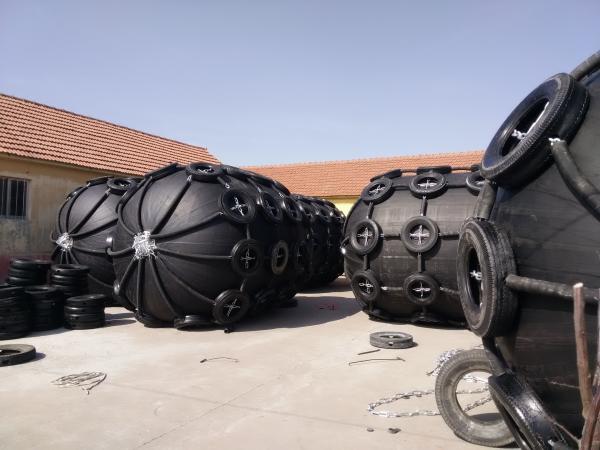

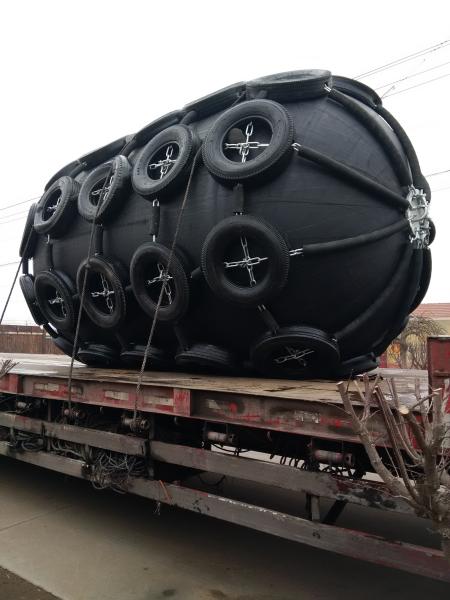

Net Type Pneumatic Fender

Pneumatic rubber fender is a device for berthing, buffering and protection of ships. It uses compressed air as a buffering medium to prevent ships from colliding when berthing, so as to reduce damage to ships.

Description:

Qingdao Henger Ship Supplies Co., Ltd.
We are a manufacturer of marine supplies, and our products involve many areas of marine use! The photo below is a product map of my company!
Because we are a manufacturer, our prices are very competitive!
Ship docking, ship launching, ship mooring, ship navigation, we can provide you with products in all fields. We are the largest production base in Qingdao. Our products are self-made and sold, and no third-party traders earn the difference!
If you want to work with us, please contact me!
My email address: tom-li@hengergroup.com
My WhatsApp: +86 15662503695
My WeChat: Lxc667381
Our company website: www.pneumaticrubberfenders.com

What Is Net type Pneumatic fender?

In 1958, the "Yokohama-type inflatable rubber fender" was developed. The development of this floating inflatable rubber fender is closely related to the progress and development of ship technology, and it must continue to respond to the needs of large oil tankers such as VLCC, ULCC and large gas carriers, bulk carriers and floating structures. Floating pneumatic fenders are widely used in ship-to-ship (STS) transshipment operations, terminals and various container ships worldwide. Since its establishment, it has provided more than millions of fenders for global shipboard and shipboard (STD) operations to provide services to our important customers. These fenders play a vital role in the safe operation of ship mooring and mooring.

Pneumatic rubber fender is a device for berthing, buffering and protection of ships. It uses compressed air as a buffering medium to prevent ships from colliding when berthing, so as to reduce damage to ships. Pneumatic rubber fenders are more economical and more durable than ordinary rubber fenders, so they are more popular and widely used.

Pneumatic rubber fender is a leading anti-collision device for maritime applications in the world today. It has become an ideal ship protection medium and has been widely used by large oil tankers, LPG ships, offshore platforms, large docks, ports and docks.

Net Type Pneumatic Rubber D Fender Rubber Marine STD STS

Net type Pneumatic fender Specification Table:

Pneumatic 50 fender size and performance requirements

Nominal size diameter

x length
mm

Initial internal

pressure
kPa

Guaranteed energy

absorption (GEA)

Reaction force at

GEA deflection(R)

Hull pressure

(Internal pressure)

at GEA deflection (P)

Minimum value at

deflection 60±5% kJ

 Tolerance±10 % kN Reference value
kPa
500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154

Pneumatic 80 fender size and performance requirements

Nominal size diameter

x length
mm

Initial internal

pressure
kPa

Guaranteed energy

absorption (GEA)

Reaction force at

GEA deflection (R)

Hull pressure

(Internal pressure)

at GEA deflection (P)

Minimum value at

deflection 60±5% kJ

 Tolerance±10% kN Reference value
kPa
500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship
For Small & Middle Size Ship

Net Type Pneumatic Rubber D Fender Rubber Marine STD STS

Features of Net type Pneumatic fender:

*Henger company can provide various sizes, diameter from 500mm to 4500mm, length from 500mm to 12000mm

*Henger company can provide a variety of colors according to customer requirements, black, milky white, warship-grade gray, orange red, blue

*The fender is composed of an inner rubber layer, a reinforcing wire layer and an outer rubber layer

*The fender is fully tested for material and hydrostatic pressure irregularities before leaving the factory

*The angle and durability are correctly evaluated during the production process

*Can be customized for customers with all relevant signs

*The fender will carry the latest certification

Net Type Pneumatic Rubber D Fender Rubber Marine STD STS

Henger fenders provide services and guarantees:

The warranty period of Henger Yokohama rubber fender is 24 months, which also comes from the trust of customers in our factory's products.

After-sales service We are online 24 hours a day. As long as you have any questions, we will always be there. We will have professional staff to answer you and provide you with technical support.

Transportation According to customer requirements, we can carry out deflated pallet transportation, and small fenders do not need to be deflated for transportation. We always put the requirements of our customers first.

Net Type Pneumatic Rubber D Fender Rubber Marine STD STS

FAQ

Q: What’s the delivery time and payment terms ?

A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.
