Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Specifications
Brand Name :
Henger
Model Number :
016
Certification :
ISO9001:2000, ISO14000, SGS, CE, etc.
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5days
Packaging Details :
paller
Material :
PU/EVA+Galvanized Beam
Color :
Yellow,Orange
Product name :
Safety Roller Barrier
Usage :
Road Traffic Safety
Size :
1.2 m*1 m* 1.2 m or Custom
Standard :
AISI,GB,JT/T281/AASHTO M180
Description
ISO Standard PU And PVC Safety Roller Guard Rail Rolling Barrier Guardrail

Company Profile

Qingdao Taicheng Transportation Facilities Co., Ltd. ( Taicheng ) is a technology based innovation enterprise invested by Henger Group . It is headquartered in Jinkou Industrial Park, Qingdao. Taicheng Transportation has an innovative research team, advanced manufacturing technology, first-class production facilities and perfect testing methods. Reliable product quality, enthusiastic after-sales service, dedicated
to the great cause of improving road safety in China.

Product Introduction

The new road rotating guardrail is also called the "anti-collision bucket guardrail" or " new type highway roller barriers " . It mainly adopts the "one column and four beams " method . By strengthening the performance and installation method of the column and the fence, it effectively prevents the car from crossing the fence and driving out of the driving lane.

Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System

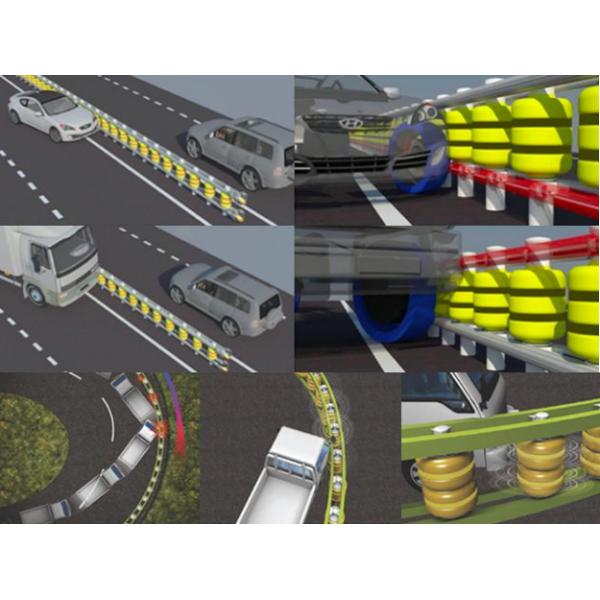

Working Principle
The new anti-collision bucket guardrail has a built-in anti-impact energy-absorbing rotary anti-collision barrel, and the flexible barrel with anti-collision and energy absorption is mounted on the column, so that the rotating barrel can rotate freely on the column. The free rotation of the sets of anti-collision rotating rollers effectively decomposes the impact force of the car when the accident occurs, so that the impact energy perpendicular to the direction of the guardrail is converted into rotational energy parallel to the direction .
The rotation energy can be combined with the elastic energy of the rotating barriers itself to keep the accident vehicle to maintain the normal traveling direction and speed. And it effectively mitigate the serious consequences of traffic accidents and greatly protect the personal safety of the passengers.
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System

Product Components And Specifications

The rotary anti-collision guardrail is composed of rotating barrel, beam, column, reflective strip, casing, rotating coil and connecting piece.
The exploded view is as follows:
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System
Products specification
Roller (royalty barrel)
H240xφ350mm,H270xφ350
Post
φ140x2200x4.5mm
Cross beam
100x80x4.0mm
Connecting rack
430x84x70x4.0mm
U shape frame
380x70x6.0mm
Turning circle
φ182xφ145x2.0mm
Square buckle
46x64x4.0mm
Terminal
1300x230x2.0mm
Bolts&Nuts
M20x60/120/140mm

Rotary anti-collision guardrail constitutes the outline - the deviation of the outer dimensions of the rotating anti-collision guardrail member is allowed 5%
Easy to install
The new rotary anti-collision guardrail series adopts modular design, the whole
installation is simple and quick, no need for professional guidance, the installation is
safe and pollution-free, and the installation cost is low.
Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System

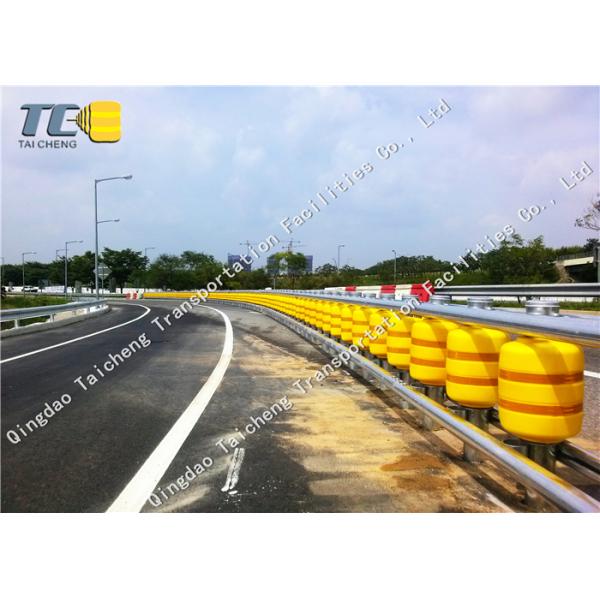

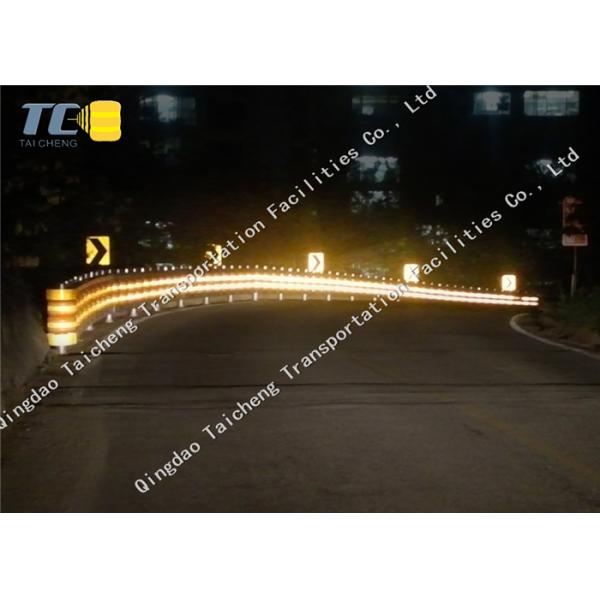

Product Application

Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System

Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System

Safety Roller Guard Barrier Anti Collision Proof Rolling Barrier System

Company Profile

Qingdao Taicheng Transportation Facilities Co., Ltd. ( Taicheng ) is a technology based innovation enterprise invested by Henger Group . It is headquartered in Jinkou Industrial Park, Qingdao. Taicheng Transportation has an innovative research team, advanced manufacturing technology, first-class production facilities and perfect testing methods. Reliable product quality, enthusiastic after-sales service, dedicated
to the great cause of improving road safety in China.
