Customized anti-rust and air-tight multi-function upgrading marine rubber airbag

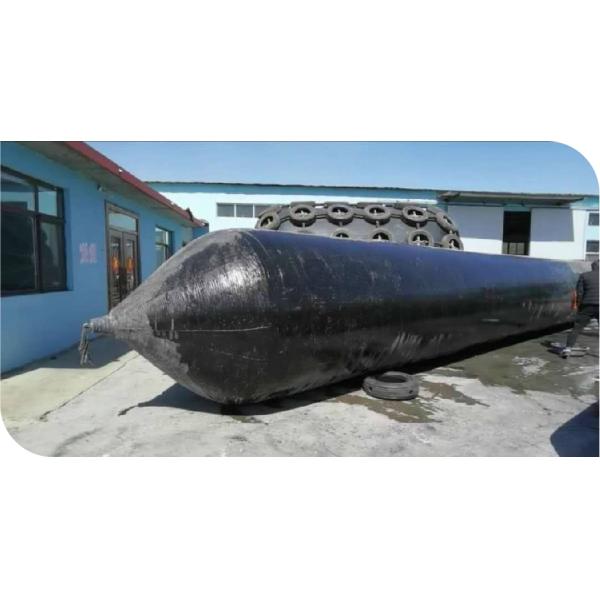

Ship launching airbags are known as roller bags, launching air balloons, inflatable marine airbags, air lift bags, and salvage bags. Ship launching airbags are specialized marine rubber air bags that are used for launching marine vessels. ship landing or haul-outs. Marine rubber airbags are also widely used in loading, floating, lifting and moving sunken ships, and salvaging stranded boats. Rubber airbags are made of heavy-duty synthetic-tire-cord layers with inner and out rubber layers in a long cylindrical balloon shape.

Up to now, more cargo vessels, barges, chemical tankers, tugboats, AHTS vessels, floating docks, and even construction caissons have all been launched using our ship launching rubber airbags.

We are proud to provide the highest quality ship launching airbags, together with expert service and timely customer support for clients from Southeast Asia, Europe, Turkey, Middle-East, North America, Africa, South America.. Let’s help you successfully complete your project – on budget and on time.

Henger's Advantages

1. High Bearing Capacity

Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.

Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.

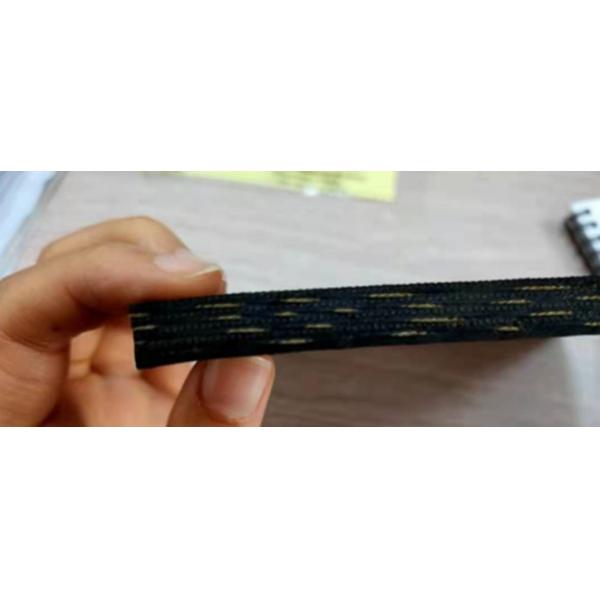

The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.

The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.

2. High Kneading-resistance Capability

When the airbag is rolling under the ship bottom, it will suffer a “kneading force” from ship bottom and ground because of not uniform rolling speed, which could case problems like delamination, layer buckling, etc.

Henger improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .

Each layers of airbag are painting with specially formulated mucilage to dissolve dust & impurities.

The specially formulated mucilage

also higher the adhesiveness among each layers to guarantee the air tightness.

While most of friendly competitors cut this process in production to save manufacturing cost.

3. New Anti-explosion Design of End Part

The possibility of air leakage in the joint area of metal part and rubber part is also increasing as working pressure of airbag is added. After using for times under high working pressure, the airbag would burst and metal part would hurt workers.

Henger invented new anti-explosion design of the airbag end part, increasing the bonding strength and air tightness between rubber body part and end metal part. Henger airbag is working very well under higher working pressure without potential safety hazard.

4. High strength galvanized anti-release structure

casting metal part with chemlok coating.

chemlok coating strengthens the bonding between metal part and rubber body after vulcanization.anti-release structure of the metal part makes the connection more tight.

Specifications

Our Certifications System:

Application of Marine Rubber Airbag:

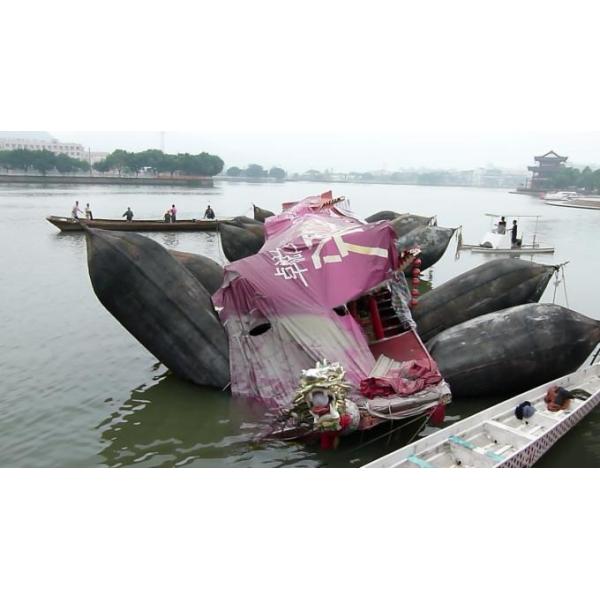

Qingdao Henger ship launching airbags are widely used for ship launching, lifting and handling of large heavy objects, salvaging shipwrecks, stranding for rescue, etc. It has the characteristics of less investment, quick effect, safety and reliability.
It has high bearing capacity, high anti-kneading ability, new structure with end anti-riot design, optimized structural layout, durable anti-aging ability and wear resistance, higher flexibility and shock absorption capacity.

Why do customers like to choose us?

1. Value for Money, you will get the best price based on the excellent quality.

2. Unrivalled Expertise, we promise first-rate product quality and service.

3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.

4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.

5. For our customers, we will provide a set of repaire tools with free.
