Specifications
Brand Name :
Henger
Model Number :
3.3*6.5
Certification :
ISO,BV,ABS,CCS,LRS,DNV,NK,GL
Place of Origin :
China
MOQ :
1 piece
Price :
$1000-$10000
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram,
Supply Ability :
500 pieces per months
Delivery Time :
5-10 days
Packaging Details :
In nude or Inflatable or as per customized
Material: :
Natural Rubber
Size: :
D500*1000--D4500*9000
Initial Internal Pressure: :
0.05MPa/0.08MPa
Delivery: :
7-10 days
Lifespan: :
7-10 years
Application: :
STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat
Warranty Period: :
3 Years
Chain: :
312,hot Galvanizing Or Stainless Steel(304,316)
Description

STS Anti Explosion 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender

1. Marine Rubber Fender

Pneumatic rubber fender is a device for berthing, buffering and protection of ships. It uses compressed air as a buffering medium to prevent ships from colliding when berthing, so as to reduce damage to ships.

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

2.Pneumatic fender Specification Table

Pneumatic 50 fender size and performance requirements

Nominal size diameter

x length
mm

Initial internal

pressure
kPa

Guaranteed energy

absorption (GEA)

Reaction force at

GEA deflection(R)

Hull pressure

(Internal pressure)

at GEA deflection (P)

Minimum value at

deflection 60±5% kJ

 Tolerance±10 % kN Reference value
kPa
500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154

Pneumatic 80 fender size and performance requirements

Nominal size diameter

x length
mm

Initial internal

pressure
kPa

Guaranteed energy

absorption (GEA)

Reaction force at

GEA deflection (R)

Hull pressure

(Internal pressure)

at GEA deflection (P)

Minimum value at

deflection 60±5% kJ

 Tolerance±10% kN Reference value
kPa
500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship
For Small & Middle Size Ship

3.Production Process

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

4.Quality

Marine Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. Operational experience over a long period of time attests to its high safety and reliability, and hydraulic pressure tests have proven the strength to be suitable.

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

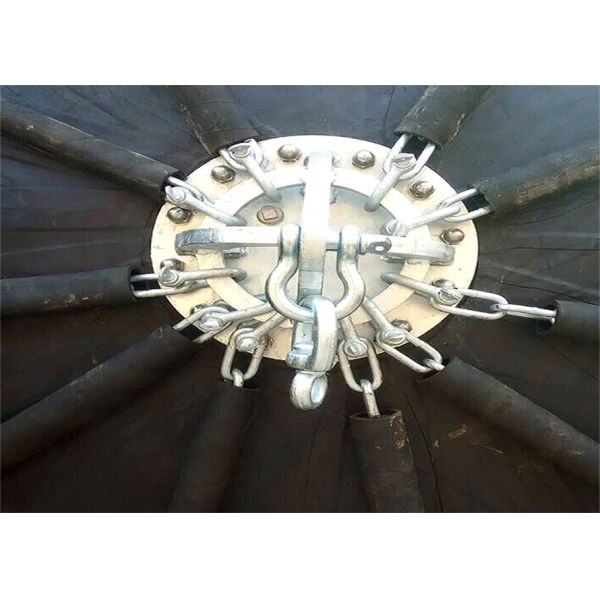

The flange, the chain and the shackle are all made of hot-dip galvanized, will not rust, the thickness is sufficient, and can be used for a long time.

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

We have to be professional and mature in gluing technology, and the surface of the fender is flat and smooth, and there is no air leakage.

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

5. Factory Facilities

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

6.Company Exhibition

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

10. Packing & Delivery

STS 0.05MPa / 0.08MPa Car Tyre Marine Rubber Fender Anti Explosion

11. Our Company

Qingdao Henger Shipping Supplies.,Ltd lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with all walks of life.
