Specifications
Brand Name :
Henger
Model Number :
D2.5M*L3.5M
Certification :
CCS.BV.ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
30 per week
Delivery Time :
About 10 days
Packaging Details :
Nude packing
Product Name :
inflatable marine fender
Brand :
Henger
Material :
Natural Rubber
Size :
D2.5M*L3.5M
Packing :
Pallet
Description

High quality marine fender natural rubber floating D2.5x3.5m inflatable marine fender

What type do we have?

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.

Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.

Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.

Natural Rubber Floating Inflatable Marine Fender D2.5x3.5m

Pneumatic rubber fender Parameter

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship
For Small & Middle Size Ship

Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5
For Large-tonnage Ship

Natural Rubber Floating Inflatable Marine Fender D2.5x3.5m

Pneumatic Rubber Fender Features

Our rubber content has been upgraded from 54% of the same industry standard at the beginning to 56%. In order to improve the quality of our products again and make you or your customers more competitive in the market, we have now increased the rubber content to 60%. In this way, the flexibility of the rubber fender will be greatly improved, and the puncture resistance will also be enhanced. We can provide the highest standard SGS certificate in the industry to prove our quality.

We have been engaged in the marine industry for more than 20 years. We not only have BV, IOS, LR, CCS and other certificates, our products are in full compliance with international standards, and all our products can provide factory inspection reports. For so many years, we have maintained a complete warranty and after-sales service, the warranty period can be as long as 24 months.

Natural Rubber Floating Inflatable Marine Fender D2.5x3.5m

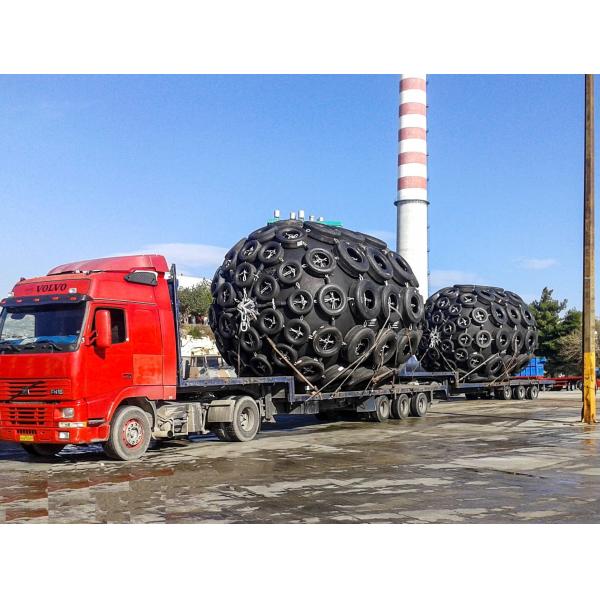

Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

Natural Rubber Floating Inflatable Marine Fender D2.5x3.5m

Pneumatic Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier

Natural Rubber Floating Inflatable Marine Fender D2.5x3.5m

Pneumatic Rubber Fender Inflation process

  1. Install the inflatable rod
  2. Remove the valve core with the wrench
  3. Link up quick connector inflation, inflation pressure 0.05-0.08mpa, recommended pressure 0.05mpa.
  4. pressure by gauge
  5. Screw the valve core with the wrench

Company Introduction

We are a manufacturer of Inflatable Rubber Fenders and Marine Airbags.We have nearly 20 years of production experience in the production of these two products. Our products have now been sold all over the world. -----------(We have customers in Indonesia, India, Vietnam, Malaysia and other countries in Asia, and we have a lot of sales experience in America, Canada, Brazil, Colombia, Peru and other countries; European countries,such as the United Kingdom, Germany, France, Poland, Russia and other countries have expressed that our products are of high quality and low price, and they want to establish cooperative relations with us.)

After-sale service

The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.

After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
