Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Specifications
Brand Name :
Henger
Model Number :
2.5*12m
Certification :
BV / CCS / ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Pieces per months
Delivery Time :
7
Packaging Details :
Pallet
Material :
Natural Rubber
Application :
Ship Launching
Diameter :
0.8 /1.0 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m
Working Pressure :
0.05MPa-0.17MPa
Color :
Black
Size :
Customized Size
Layer :
5/ 6/ 7 / 8 / 9 / 10 Layers
Packing :
Pallet
Description

Natural Rubber 2.5*12m 4-12 Layers Boat Launching Marine Rubber Airbag

If you want to work with us, please contact me.
My email address: ediwn-xaio@hengergroup.com
My WhatsApp: +86 13371482686

Product Advantage

The outer rubber is made of natural rubber with hard texture, high toughness, high wear resistance, corrosion resistance and aging resistance, and synthetic rubber such as styrene butadiene and butadiene rubber. Adhesive adopts imported high-strength rubber special adhesive, which completely solves the phenomenon of degumming between each layer of the airbag.

Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching


Technical Requirement

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  1. Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  1. Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  2. Safety Factor: >4.5
  3. Air Tightness: depressurization < 5% after 1hour inflation
  4. Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  5. Anti-explosion design of end part.

Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching


Specifications

Diameter(m)Effective Length(m)LayerPressure(MPa)
1.0105~60.07~0.10
1.0125~60.07~0.10
1.0155~60.07~0.10
1.2105~60.08~0.12
1.2125~60.08~0.12
1.2155~60.08~0.12
1.5125~80.08~0.16
1.5155~80.08~0.16
1.5185~80.08~0.16
1.5204~80.08~0.16
1.5245~80.08~0.16
1.8125~80.08~0.15
1.8155~80.08~0.15
1.8185~80.08~0.15
1.8205~80.08~0.15
1.8245~80.08~0.15
2.0186~100.08~0.18
2.0206~100.08~0.18
2.0246~100.08~0.18
2.5187~100.07~0.13
2.5207~100.07~0.13
2.5247~10

0.07~0.13

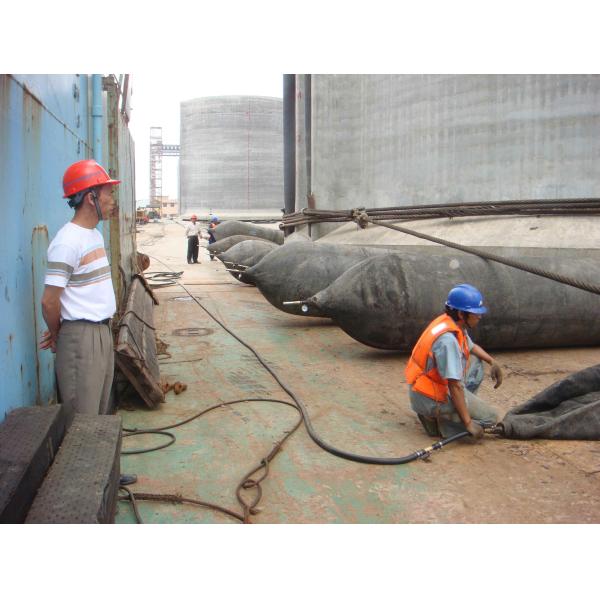

Marine Rubber Airbag Application

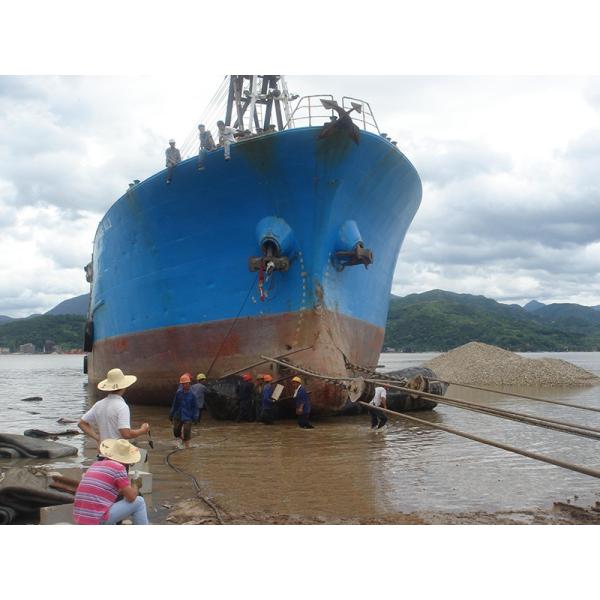

1.Ship Launching & Upgrading
2.Weight Lifting & Moving
3.Buoyancy Aid & Salvage

Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching

Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching

Our Services

1.One-to-one VIP service.

2.Lifelong after-sale service.

3.Professional suggestions for suitable marine rubber airbag size and quantity.

4.Teach customers to use the marine rubber airbag on site .

5.Any questions will be replied within 24 hours.

Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching
Natural Rubber 2.5*12m 4-12 Layers Marine Rubber Airbag Boat Launching

Company Information

Qingdao Henger Shipping Supplies Co., Ltd

Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
