Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Specifications
Brand Name :
Henger
Model Number :
500mm x 1000mm-3300mm x 6500mm
Certification :
CCS BV ISO17357
Place of Origin :
China
MOQ :
1 PC
Price :
USD 230 TO USD 7000 PER PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 PC PER WEEK
Delivery Time :
5-8 DAYS
Packaging Details :
International General Packaging
Product Name :
Pneumatic Rubber Fender/Marine Fender/Yokohama Fender
Brand :
Henger
Material :
Natural Rubber
Specification :
Dia 0.5m-4.5m, L 0.7m-9m/Customized
Certificate :
CCS / BV / LR / ISO17357/DNV/SGS
Shelf Life :
24 Months
Working Pressure :
50kpa/80kpa
Application :
Dock,Ship,Ship To Ship
Service Life :
10 Years
Production Time :
5-10 Days
Payment Method :
L/C, D/A, D/P, T/T, Western Union, Moneygram
Accessories :
Tyre Sheath/Swivel/Shackle/Chain
Packing :
Naked/Pallet
Colour :
Black/Blue/As Requirements
Description

Yokohama type Pneumatic Marine Floating Fender Ship Rubber Accessories

Product Description
Features of our Yokohama type Pneumatic Marine Floating Fender Ship Rubber Accessories:
Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
Standard colors gray and black
Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
Comprehensively tested for material and hydrostatic pressure irregularities
Correctly evaluated for angular and durability performance
Clearly marked with all relevant identification
Complete with up-to-date certification
Available in a variety of sizes
Thick outer skin supercedes that of a normal surface fender
Fitted safety valve for fenders of 2.5 m diameter upwards
Pneumatic rubber fender is a prominent and high-pressure anti-collision system on marine application in the world now. It’s made of strong rubber sheet with synthetic-cords. Compressed air inside can keep pneumatic fender to float on water. It’s also as a shock absorber when ship to ship or ship to dock operations.
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories

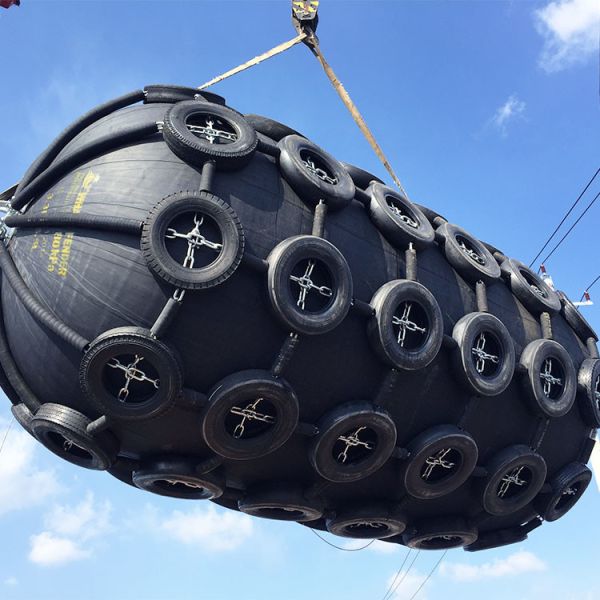

Type-I: Net type fenders
Pneumatic rubber fender is covered and protected by wire, fiber or steel chain with rubber sleeves or tires.
Details Images
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories
1.Fender body
2.Tyres
3.Chain/Shackles
PRODUCT SPECIFICATIONS
Normal Size
Performance(inner pressure:50Kpa,60%deflection)
(KG)
Body weight
(KG)
Chain-net weight
(mm)
Diameter
(mm)
Length
(KN)
Reaction force at GEA
( KN.M)
Guaranteed energy absorption (GEA)
500
1000
64
6
23
600
1000
74
8
28
700
1500
137
17
58
1000
1500
182
32
82
100
1000
2000
257
45
148
152
1200
2000
297
63
167
200
1350
2500
427
102
220
298
1500
3000
579
153
340
450
1700
3000
639
191
420
482
2000
3500
875
308
650
890
2000
4000
1008
368
740
1000
2500
4000
1381
663
1080
1180
2500
5500
2019
943
1180
1380
3000
5000
2422
1357
1980
2388
3000
6000
2906
1628
2400
2690
3300
4500
1884
1175
2380
2617
3300
6500
3015
1814
2980
3000

FAQ
1. Q: Can you make the fenders with our brand?
A: Of course, we accept OEM and ODM. you just need to offer your drawing, we can design it for you.
2. Q: How about hoses quality?
A: Every fenders is under a rigorous prosess and test for every step since the raw material until to the package.
3. Q: Do you have any international certificate ?
A: Yes. we have BV,DNV,ISO, CCS.
4. Q: How long is the delivery time?
A: According to your order, we deliver the fenders timely.
5.Q: Can you send samples for testing?
A: Yes.We can provide samples for testing.
Please consult the salesperson in advance for sample details and prices, if you need it.
Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories

Type-II:Sling type fenders
Pneumatic rubber fender is not protected by tires-net. It’s simple and light weight.
