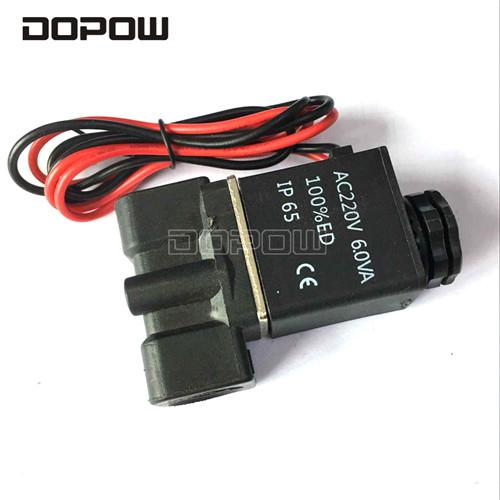

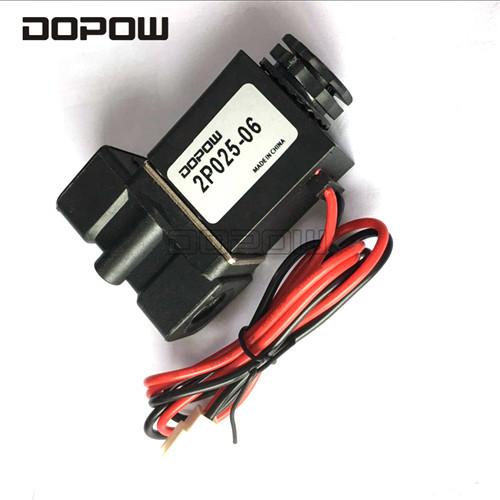

Direct Acting Plastic Pneumatic Solenoid Valve 2P025-06 1/4'' Inch
Direct Acting Plastic Pneumatic Solenoid Valve 2P025-06 1/4'' Inch
Direct Acting Plastic Pneumatic Solenoid Valve 2P025-06 1/4'' Inch
Direct Acting Plastic Pneumatic Solenoid Valve 2P025-06 1/4'' Inch
Specifications
Brand Name :
DOPOW
Model Number :
2P025-06
Certification :
CE ISO9001
Place of Origin :
Yueqing China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100000PCS/MO
Delivery Time :
5 working days after receiving the customers' payment
Packaging Details :
Wooden box，Standard carton packaging
Product Name :
Direct Acting Pneumatic Valve
Fluids :
Air, Water, Oil
Function :
2 Way, Normally Closed (NC)
Port Size :
1/4''
Max Pressure Resistance :
1.5MPa (215PSI)
Seal Materiaof media :
NBR (Standard), VITON (Option)
Action: :
Direct Acting
Body Material :
Plastic
Description

2P025-06 1/4'' Inch Direct Acting Plastic Pneumatic Solenoid Valve

Product Features:

1. Safety, applicability, lightweight form factor.
2. For remote electric control fluid conduit in the valve opening and closing.
3. Please note that the gas flow direction and the takeover tooth type is correct installation.
4. With solenoid operated for control appropriate flow and direction, provide great performance.
5. Great body for a long lifespan, perfect for electrically driven pneumatic power control.

Technical Data of 2V Series Pneumatic Solenoid Valves:

Model No
2P025-06
2P025-08
Fluids
Air, Water, Oil, Gas
Action
Direct Acting
Type
2 Way, Normally Closed (NC)
Cv value
0.23
Port size
1/8''
1/4''
Viscosity limit
Under 20Cst
Pressure range
0~1.0Mpa (0~145psi)
Proof pressure
1.5Mpa (215psi)
Material body
Plastic Nylon
Seal Material
NBR
Min. activating time sec
0.05sec and below

Specifications:

ORDERING CODE
2P 025 06 V AC220V W
Type Aperture Flow Rate Port size Seal Material Voltage Electricity Connect Type
2V:2V Series two position two way solenoid valve 025:2.5mm 06:G1/8" Blank:NBR DC12V W:Out-lead Wire
08:G1/4" DC24V
130:13mm 10:G3/8" E:EPDM AC24V
15:G1/2" AC110V D:Din Connector
250:25mm 20:G3/4" V:VITON AC220V
25:G1" AC380V

Model 2P025-06 2P025-08
Working Medium Air,Water,Oil,gas
Motion Pattern D irect Drive Type
Type Normal Close Type
Aperture of Flow Rate(mm) 2.5
CV Value 0.23
Joint Pipe Bore 1/8″ 1/4″
Operation Fluid Viscosity 20 CST (Below)
Working-pressure 0~0.7 MPa
Max. Pressure Resistance 1.0 MPa
Operating Temperature -5~80℃
Voltage Range ±10%
Material of Body Engineering Plastic
Material of Oil Seal NBR or VITON
